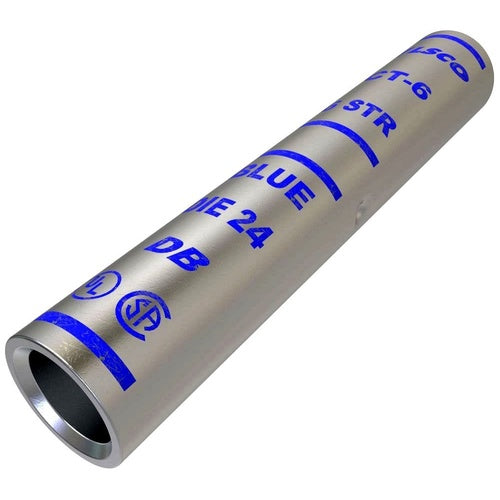

Ilsco CT-6 6Awg Copper Crimp Connector

Overview

Ilsco CT-6 6Awg Copper Crimp Connector

Product Specifications

• UPC: 78366911590
• Length: 1.75 Inch
• Inner Diameter: 0.225 Inch
• Outer Diameter: 0.32 Inch
• Body Material: Electro-Tin Plated High Strength Seamless Copper
• Approval: UL 453G, UL 486A/B, CSA
• Additional Information: Application Grounding and Bonding; Temperature Rating 90 Deg C; Packaging Quantity 50
• Catalog Number: CT-6
• Model: CT
• Type: Center Wire Stop
• Voltage Rating: 35 KV
• Conductor Size: 6 AWG
• Conductor Material: Copper
• Color Code: Blue
• Barrel Type: Short with Chamfered End
• Catalog Description: SURECRIMP COPPER COMPRESSION SLEEVE, CONDUCTOR SIZE 6, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Center Wire Stop Type; 1.75 Inch; 0.225 Inch Inner Diameter; 0.32 Inch Outer Diameter; Copper Conductor Material; UL 453G, UL 486A/B, CSA Approval; 35 kV Voltage Rating; Electro-Tin Plated High Strength Seamless Copper Body Material; 6 AWG Conductor Size; Blue Color Code; Short With Chamfered End Barrel Type; Surecrimp [R] Brand; Application Grounding and Bonding; Temperature Rating 90 Deg C; Packaging Quantity 50; CT Model
• Made In Usa: Yes
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 783669115901
• SKU Name: ct6 ilsco
