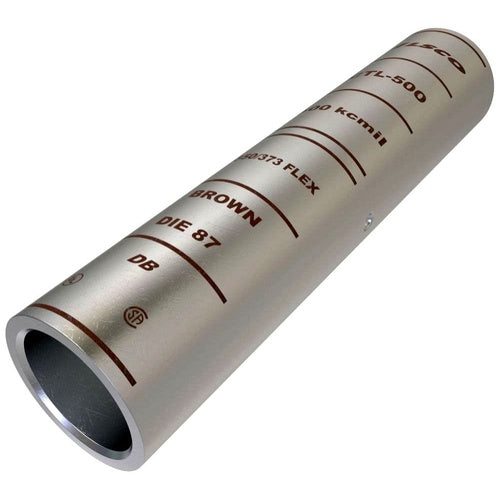

Ilsco CTL-500 500mcm Copper Crimp Connector

Overview

Ilsco CTL-500 500mcm Copper Crimp Connector

Product Specifications

• UPC: 78366914898
• Length: 4.625 Inch
• Inner Diameter: 0.828 Inch
• Outer Diameter: 1.062 Inch
• Body Material: Electro-Tin Plated High Strength Seamless Copper
• Approval: UL 453G, UL 486A/B, CSA
• Additional Information: Application Grounding and Bonding; Temperature Rating 90 Deg C; Packaging Quantity 6
• Catalog Number: CTL-500
• Model: CTL
• Type: Center Wire Stop
• Voltage Rating: 35 KV
• Conductor Size: 500 KCMIL
• Conductor Material: Copper
• Color Code: Brown
• Barrel Type: Long with Chamfered End
• Catalog Description: SURECRIMP COPPER COMPRESSION SLEEVE, CONDUCTOR SIZE 500, LONG BARREL, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Center Wire Stop Type; 4.625 Inch; 0.828 Inch Inner Diameter; 1.062 Inch Outer Diameter; Copper Conductor Material; UL 453G, UL 486A/B, CSA Approval; 35 kV Voltage Rating; Electro-Tin Plated High Strength Seamless Copper Body Material; 500 kcmil Conductor Size; Brown Color Code; Long With Chamfered End Barrel Type; Surecrimp [R] Brand; Application Grounding and Bonding; Temperature Rating 90 Deg C; Packaging Quantity 6; CTL Model
• Made In Usa: Yes
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 783669148985
• SKU Name: ctl500 ilsco

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
