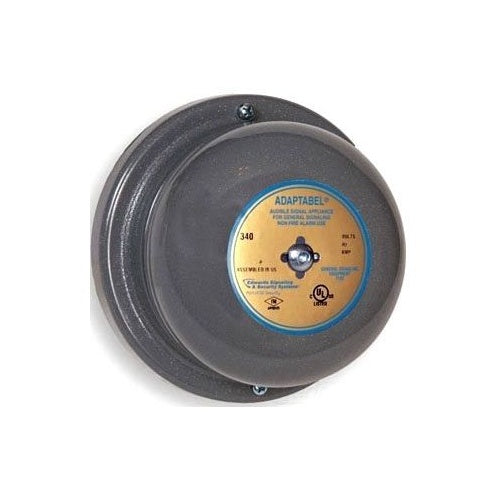

Edwards 340-4G5 4" 24Vac Vibrating Bell

Overview

Edwards 340-4G5 4" 24Vac Vibrating Bell

Product Specifications

• UPC: 78264023480
• Gong Size: 4 Inch Diameter
• Size: 4-1/2 Inch Diameter x 2-13/32 Inch Depth
• Mounting: Octagon Box/1-Gang Box/Square Box/Surface
• Application: Office, Factory, Heavy Machine Shop
• Approval: UL 464, FM, CSFM
• Additional Information: Finish Corrosion Resistant Heat Flowed Epoxy Coated Die-Cast; DC Coil Resistance 50 Ohm
• Catalog Number: 340-4G5
• Brand Name: Adaptabel[R]
• Model: 340
• Type: Round, Gong
• Voltage Rating: 24 Volt AC
• Current Rating: 0.31 Amp
• Power Rating: 7.4 Volt Amp
• Sound Intensity: 98 Decibel at 1 Meter, 88 Decibel at 10 Foot
• Catalog Description: 4 INCH AC VIBRATING BELL. CAN BE USED IN OUTDOOR APPLICATIONS WITH THE ADDITION OF AN APPROVED BOX FOR THE APPLICATION.
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: Round, Gong Type; 4-1/2 Inch Diameter X 2-13/32 Inch Depth Size; UL 464, FM, CSFM Approval; Office, Factory, Heavy Machine Shop Application; 24 Volt AC Voltage Rating; Octagon Box/1-Gang Box/Square Box/Surface Mounting; 0.31 Amp Current Rating; 7.4 Volt Amp Power Rating; 98 Decibel at 1 Meter, 88 Decibel at 10 Foot Sound Intensity; 4 Inch Diameter Gong Size; Finish Corrosion Resistant Heat Flowed Epoxy Coated Die-Cast; DC Coil Resistance 50 Ohm; 340 Model
• Manufacturer: Edwards Signaling
• Manufacturer Brand: Security Systems/Fire Alarm Systems
• Sub Category: Bell
• Unspsc: 60131402
• UPC 12 Digit: 782640234808
• SKU Name: edw 3404g5

Resources

• Manufacturer Spec Sheet
