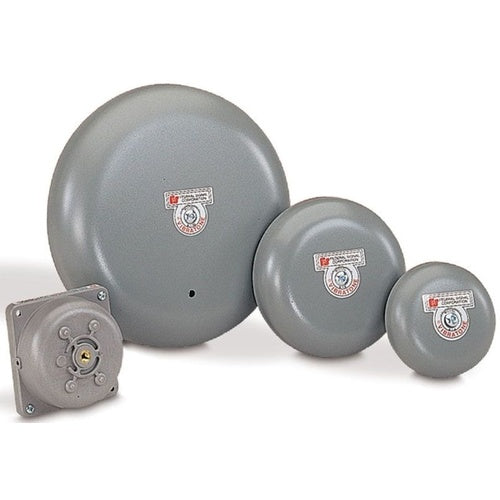

Federal-Signal 500-024-1 Vibrating Bell Mechanism, 24VAC
Product Specifications
Brand Name: Federal Signal
Type: Vibrating Mechanism For Models A4, A6 and A10
Enclosure: Type 3R With Optional Weatherproof Backbox
Color: Gray
Dimensions: 4 H x 4 W x 2.125 D IN
Mounting: Surface
Operating Current: 0.4 A
Operating Voltage: 24VAC
Special Features: Modular Design Provides Greater Flexibility
Standard: UL Listed/cUL Listed/CSA Certified
Sub Brand: Vibratone
Catalog Description: VIBRATING BELL MECHANISM, UL AND CUL, 24VAC, GONG SOLD SEPARATELY
Category: Bells,Horns,Sirens,Buzzers,Strobes
Full Technical Description: Round Vibrating Type; 4 Inch W X 2.125 Inch D X 4 Inch H Size; UL, CUL, CSA, FM Approval; Industrial Application; 24 VAC Voltage Rating; NEMA 3R Enclosure; 0.4 Ampere Current Rating; 98 to 102 dB at 10 ft, 108 to 112 dB at 1 M Sound Intensity; 6 Inch Dia Gong Size; VIBRATONE[R] Brand; 500 Model
