Additional Information: Overall Dimension 1.52 Inch Length x 1.52 Inch Width x 1.96 Inch Height; Terminal Screw Size 8-32 TPI; Dielectric Strength 2000 Volt; Terminal Clamp Material Nickel Plated Steel; Temperature Rating -40 to 75 Deg C; Enclosure IP20; Flammability Rating UL 9
Catalog Number: HBL5266C
Brand Name: Insulgrip[R]
Type: Standard, Heavy Duty
Constructional Feature: Impact/Chemical Resistant
Configuration: 5-15P
Voltage Rating: 125 Volt AC
Current Rating: 15 Amp
Number Of Poles: 2

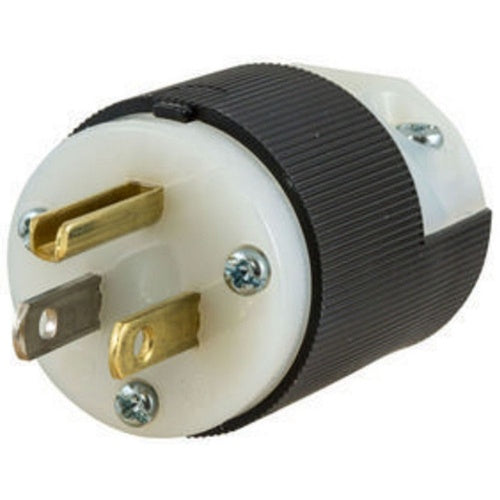

Catalog Description: STRAIGHT BLADE DEVICES, MALE PLUG, INSULGRIP-HEAVY DUTY, INDUSTRIAL/COMMERCIAL GRADE, STRAIGHT, 2-POLE 3- WIRE GROUNDING, 15A125V, 5-15P, BLACK AND WHITE, SINGLE PACK.
Category: Plugs,Conn,Inlets,Outlets,Lampholdr
Full Technical Description: Nylon Material; Black, White Color; 5-15P Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 125 Volt Voltage Rating; 15 Amp Current Rating; Grounding; 2 Pole(S); Impact/Chemical Resistant; 0.23 to 0.72 Inch Cord Size; Insulgrip [R] Brand; Blade Holder Material Nylon; Terminal Retainer Material Clear Polycarbonate; Terminal Clamp Material Nickel Plated Steel; Terminal Screw #8-32 TPI Brass; Enclosure Type IP20; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification W-C596G, NEMA Wd-6
