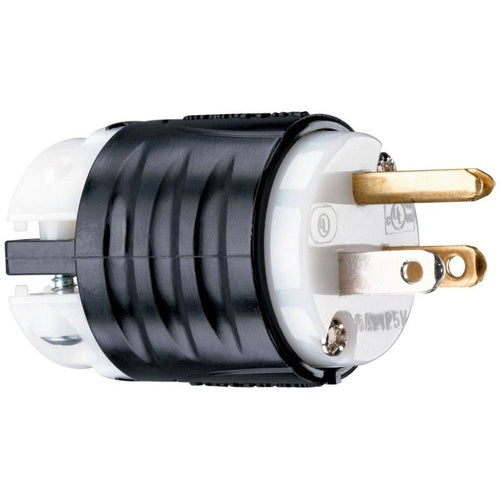

P&S PS5266-X Straight Blade Plug 3-Wire 15A 125V

Overview

P&S PS5266-X Straight Blade Plug 3-Wire 15A 125V

Product Specifications

• UPC: 78500723690
• Ground Type: Grounding
• Cord Size: 0.23 to 0.72 Inch
• Material: Nylon
• Color: Black/White
• Grade: Extra Hard Use Specification
• Approval: UL 498, CSA C22.2
• Additional Information: RoHS Compliant; Wire Size 18 to 10 AWG; Overall Dimension 1.516 Inch Width x 1.752 Inch Depth x 1.516 Inch Height; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94-V2; Applicable Standard NEMA WD-1/WD-6
• Catalog Number: PS5266-X
• Type: Polarized
• Constructional Feature: Impact/Chemical Resistant
• Configuration: 5-15P
• Voltage Rating: 125 Volt AC
• Current Rating: 15 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: STRAIGHT BLADE PLUG 2-POLE 3-WIRE 15A 125V GRAY
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Nylon Material; Black and White Color; NEMA 5-15P Configuration; 3 Wire(S); Extra Hard Use, Specification Grade; UL 498, UL (Canada and Us), CSA C22.2 Approval; 250 Volt Voltage Rating; 15 Amp Current Rating; Grounding; 2 Pole(S); Impact/Chemical Resistant; 0.23 to 0.72 Inch Cord Size; Overall Dimension 1.358 Inch Width X 1.752 Inch Depth X 1.516 Inch Height; Wire Size 4 AWG; Applicable Standard NEMA Wd-1/Wd-6, Federal Specification UL WC-596; PS Model
• Manufacturer: Pass & Seymour Inc. Wiring Devices & Accessories
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Straight Blade Plug
• Unspsc: 39121402
• UPC 12 Digit: 785007236903
• SKU Name: p&s ps5266x

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
