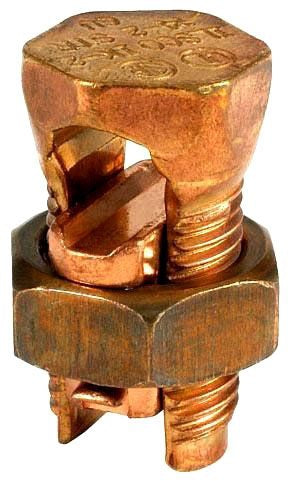

Ilsco IK-500 500 Copper Split Bolt Connector

Overview

Ilsco IK-500 500 Copper Split Bolt Connector

Product Specifications

• UPC: 78366947022
• Maximum Tap Conductor Size: 500 KCMIL
• Material: High Strength Copper Alloy
• Approval: UL 460C, CSA
• Additional Information: ROHS Compatible; Size 1.812 Inch W x 3 Inch H; Torque Rating 825 Lb-Inch; Temperature Rating 90 Deg C
• Catalog Number: IK-500
• Model: IK
• Voltage Rating: 2000 V
• Installation: Split Bolt
• Conductor Material: Copper
• Minimum Run Conductor Size: 250 KCMIL
• Maximum Run Conductor Size: 500 KCMIL
• Minimum Tap Conductor Size: 8 AWG Solid
• Catalog Description: COPPER SPLIT BOLT, CONDUCTOR RANGE FOR EQUAL MAIN & TAP 500-250, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: High Strength Copper Alloy Material; 250 kcmil min. Run Conductor Size; 500 kcmil Max. Run Conductor Size; 8 AWG Solid min. Tap Conductor Size; 500 kcmil Max. Tap Conductor Size; Split Bolt Installation; Copper Conductor Material; UL 460C, CSA Approval; 2000 V Voltage Rating; RoHS Compatible; Size 1.812 Inch W X 3 Inch H; Torque Rating 825 lb-Inch; Temperature Rating 90 Deg C; IK Model
• Made In Usa: Yes
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783669470222
• SKU Name: ik500 ilsco
