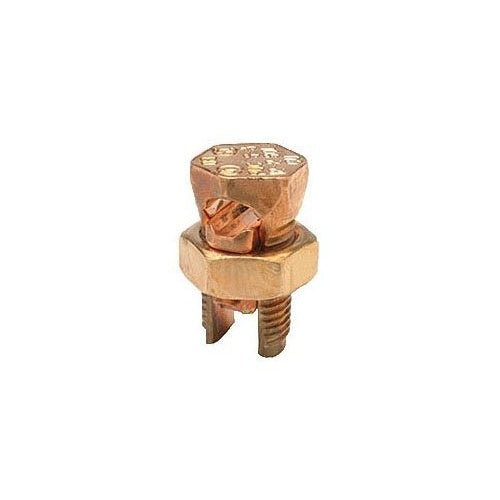

Penn-Union S-500 500-MCM Split Bolt Connector

Overview

Penn-Union S-500 500-MCM Split Bolt Connector

Product Specifications

• Category: Large Terminals & Connectors
• Full Technical Description: High Strength Copper Alloy Material; 250 kcmil min. Run Conductor Size; 500 kcmil (Copper), 6 AWG Stranded (Copperweld) Max. Run Conductor Size; 8 AWG Solid min. Tap Conductor Size; 500 kcmil (Copper), 6 AWG Stranded (Copperweld) Max. Tap Conductor Size; Split Bolt Installation; Copper/Copperweld Conductor Material; UL, CSA, RUS Approval; RoHS Compliant; Size 3 Inch L X 1.81 Inch W; Torque Rating 825 lb-Inch
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 785037593366
• SKU Name: s500 pennunion

Resources

• Manufacturer Spec Sheet
