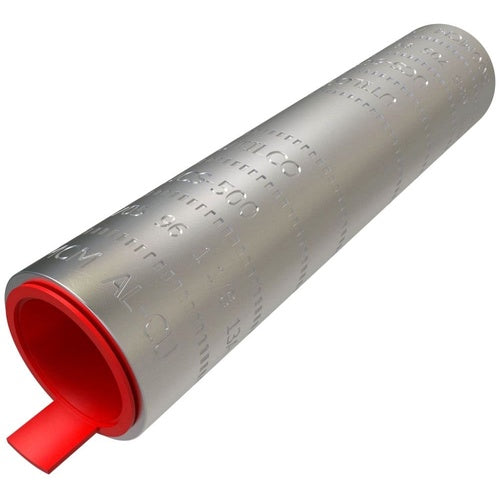

Ilsco UCS-500-Z Utility Sleeve

Overview

Ilsco UCS-500-Z Utility Sleeve

Product Specifications

• UPC: 78366992978
• Body Material: HIGH STRENGTH ALUMINUM ALLOY
• Additional Information: PACKAGING QUANTITY 3; TEMPERATURE RATING 90 DEG C; INNER DIAMETER 27/32 INCH; OUTER DIAMETER 1 5/32 INCH
• Catalog Number: UCS-500-Z
• Brand Name: ILSCO[R]
• Model: UCS
• Type: SOLID CENTER BARRIER
• Voltage Rating: 600 V
• Al/Cu Conductor Size: 500 KCMIL
• Die Index: 14
• Length: 5 INCH
• Catalog Description: ALUMINUM UTILITY COMPRESSION SLEEVE, DUAL RATED, CONDUCTOR SIZE 500
• Category: Large Terminals & Connectors
• Full Technical Description: Solid Center Barrier Type; 5 Inch; 27/32 Inch Inner Diameter; 1-5/32 Inch Outer Diameter; Aluminum Conductor Material; 600 Volt Voltage Rating; High Strength Aluminum Alloy Body Material; 500 kcmil Conductor Size; Chamfered Barrel Type; RoHS Compliant; Temperature Rating 90 Deg C; Die Index 14
• Made In Usa: Yes
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 783669929782
• SKU Name: ilsco ucs500z
