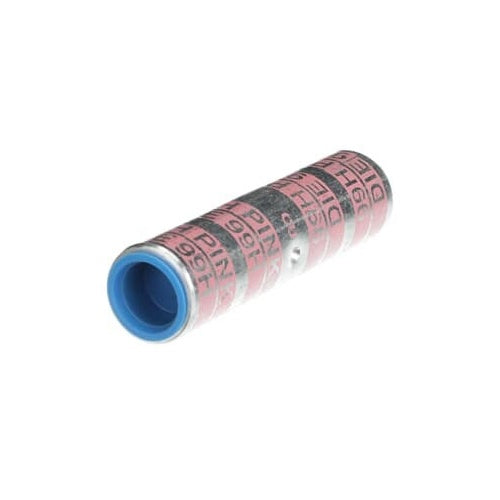

T&B 60571 2-Way Aluminum Splice Connector 500 Wire Pink

Overview

T&B 60571 2-Way Aluminum Splice Connector 500 Wire Pink

Product Specifications

• UPC: 78621060571
• Outer Diameter: 1.28 Inch
• Body Material: Wrought Electro Tin Plated High Conductivity Aluminum
• Approval: UL, CSA
• Additional Information: Die Code 99; Temperature Rating 90 Deg C
• Catalog Number: 60571
• Type: 2-Way
• Voltage Rating: 600 V to 35 KV
• Conductor Size: 500 KCMIL
• Conductor Material: Aluminum/Copper
• Color Code: Pink
• Barrel Type: Standard
• Length: 4.97 Inch
• Catalog Description: TWO-WAY ALUMINUM SPLICE CONNECTOR, WIRE SIZE 500 KCMIL, DIE CODE 99, DIE COLOR CODE PINK
• Category: Large Terminals & Connectors
• Full Technical Description: 2-Way Type; 4.97 Inch; 1.28 Inch Outer Diameter; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Wrought Electro Tin Plated High Conductivity Aluminum Body Material; 500 kcmil Conductor Size; Pink Color Code; Standard Barrel Type; Die Code 99; Temperature Rating 90 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 786210605715
• SKU Name: t&b 60571
