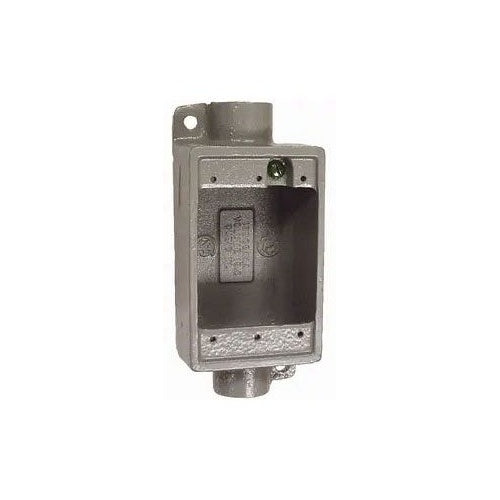

Killark FDC-1 1/2" Aluminum Deep Device Bx Type Fdc

Overview

Killark FDC-1 1/2" Aluminum Deep Device Bx Type Fdc

Product Specifications

• UPC: 78393615007
• Number Of Hubs: 2
• Hub Location: (1) Each End
• Hub Size: 1/2 Inch
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Shape: Deep
• Configuration Type: FDC
• Mounting Hardware: Lug
• Approval: UL 514A, CSA C22.2, FS W-C-586D
• Additional Information: Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw
• Catalog Number: FDC-1
• Model: FDC
• Type: Feed Through
• Height: 4-5/8 Inch
• Width: 2-7/8 Inch
• Depth: 2-7/8 Inch
• Capacity: 28.5 Cu Inch
• Number Of Gangs: 1
• Catalog Description: "ALUMINUM, DEEP FEED THRU DEVICE BOX
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Feed Through Type; Electrostatically Applied Powder Coated Copper Free Aluminum Material; 2-7/8 Inch; 4-5/8 Inch; 2-7/8 Inch; Deep Shape; 1/2 Inch Hub Size; 2 Hub(S); 1 Gang(S); UL 514A, CSA C22.2, FS W-C-586D Approval; 28.5 Cu Inch Capacity; Lug Mounting Hardware; (1) Each End Hub Location; Fdc Configuration Type; Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw; FDC Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39121308
• UPC 12 Digit: 783936150079
• SKU Name: klrk fdc1

Resources

• Manufacturer Spec Sheet
• Technical Drawing
