Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy
Form Type: Form 7
Approval: UL, CSA
Used On: Rigid Conduit/IMC
Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
Catalog Number: L67
Brand Name: DURALOY[R]
Model: 7
Access Opening: Side
Configuration: L
Cover Type: Stainless Steel
Hub Location: 90 Deg
Number Of Hubs: 2

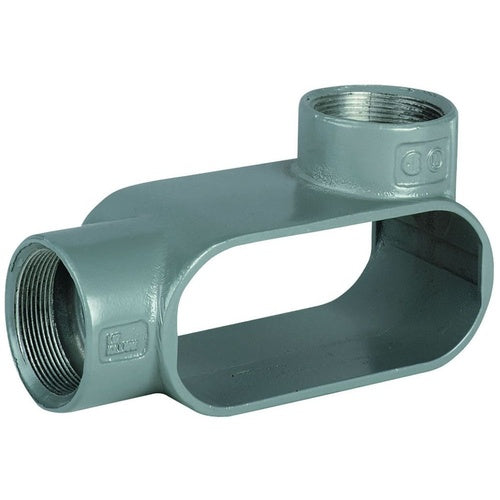

Catalog Description: 2" L HUB, IRON DURALOY 7 CONDUIT BODY
Category: Rigid Conduit Fittings - Steel
Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy Material; 8-1/4 Inch L X 3-1/8 Inch W X 4-1/4 Inch H Size; Rigid Conduit/Imc Used on; 2 Inch Hub Size; Threaded (Imc/Rigid) Installation; L Configuration; 2 Hub(S); UL, CSA Approval; Stainless Steel Cover Type; 90 Deg Hub Location; Form 7 Form Type; Side Access Opening; DURALOY[R]7 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; 7 Model
Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
Manufacturer Brand: Killark Electric Manufacturing Co.
