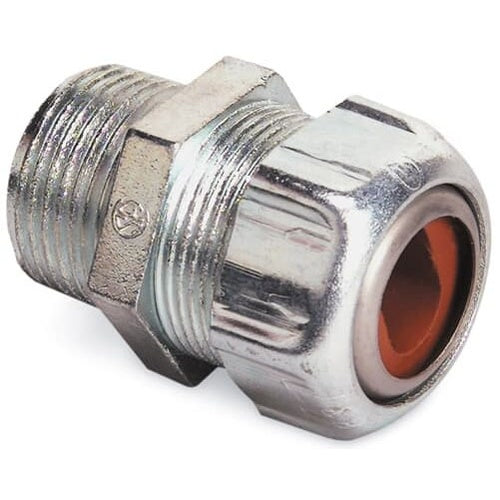

Catalog Description: SERVICE ENTRANCE CABLE CONNECTOR, TYPE COMPRESSION, CABLE SIZE (3) 8 AWG BRAIDED/NEOPRENE JACKET CABLE, (3) 6 AWG BRAIDED/NEOPRENE JACKET/PVC JACKET CABLE, (3) 4 AWG PVC JACKET CABLE, MINIMUM OPENING 0.37 INCH X 0.66 INCH, MAXIMUM OPENING 0.52 INCH X 0.81 INCH, TRADE SIZE 1 INCH, THREAD LENGTH 17/32 INCH, LENGTH 1-1/4 INCH, DIAMETER 1-5/8 INCH, CONSTRUCTIONAL FEATURE WATERTIGHT, MATERIAL ZINC ELECTROPLATED MALLEABLE IRON (BODY), PVC (GROMMET), ZINC ELECTROPLATED STEEL (COMPRESSION WASHER), APPROVAL UL 514B, USED ON OVAL SERVICE ENTRANCE CABLE, APPLICABLE STANDARD W-F-406E
Category: Service Entrance Cable Fittings
Full Technical Description: Compression Type; Zinc Electroplated Malleable Iron (Body), PVC (Grommet), Zinc Electroplated Steel (Compression Washer) Material; 1-1/4 Inch; Oval Service Entrance Cable Used on; 17/32 Inch Thread Length; 0.37 Inch X 0.66 Inch min. Opening; 0.52 Inch X 0.81 Inch Max. Opening; (3) 8 AWG Braided/Neoprene Jacket Cable, (3) 6 AWG Braided/Neoprene Jacket/Pvc Jacket Cable, (3) 4 AWG PVC Jacket Cable Cable Size; UL 514B Approval; 1-5/8 Inch Diameter; 1 Inch Trade Size; Watertight; Applicable Standard W-F-406E; SE Model
