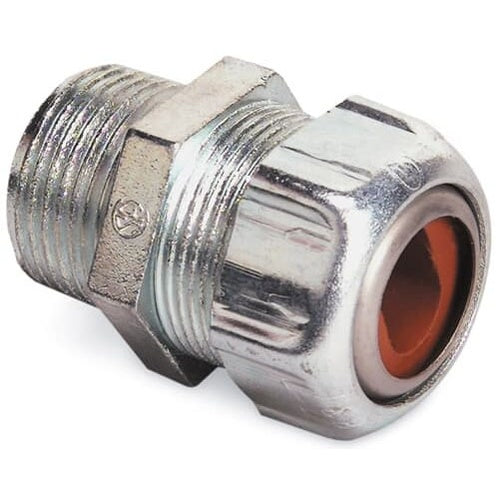

T&B 2434 1" Watertight Connector .43X.675-.555X.8

Overview

T&B 2434 1" Watertight Connector .43X.675-.555X.8

Product Specifications

• UPC: 78621002434
• Used On: Oval Service Entrance Cable
• Catalog Number: 2434
• Type: Gland, Tapered Thread
• Minimum Opening: 0.43 Inch x 0.675 Inch
• Maximum Opening: 0.555 Inch x 0.8 Inch
• Trade Size: 1 Inch
• Constructional Feature: Watertight, Oil Resistant, Sunlight Resistant
• Material: Die-Cast Zinc Body, Zinc Electroplated Chromate Coated Steel Gland, Passivated Stainless Steel Retaining Ring, Molded Neoprene Bushing
• Approval: UL, CSA
• Catalog Description: WATERTIGHT CONNECTOR FOR OVAL CABLE, HUB SIZE 1 INCH, DIE CAST ZINC BODY WITH NEOPRENE BUSHING, OVAL CABLE RANGE MAXIMUM .555 X .800 INCH, MINIMUM .430 X .675 INCH
• Category: Service Entrance Cable Fittings
• Full Technical Description: Gland, Tapered Thread Type; Die-Cast Zinc Body, Zinc Electroplated Chromate Coated Steel Gland, Passivated Stainless Steel Retaining Ring, Molded Neoprene Bushing Material; Oval Service Entrance Cable Used on; 0.43 Inch X 0.675 Inch min. Opening; 0.555 Inch X 0.8 Inch Max. Opening; UL, CSA Approval; 1 Inch Trade Size; Watertight, Oil Resistant, Sunlight Resistant
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Service Entrance Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210024349
• SKU Name: t&b 2434

Resources

• Manufacturer Spec Sheet
