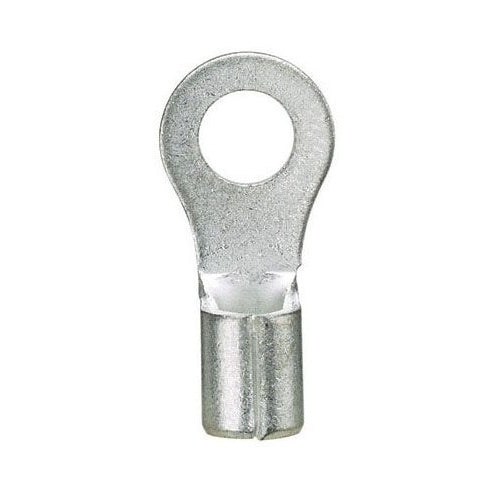

Panduit P10-38R-D Ring Non-Insulated 12-10Awg 3/8" Stud Pk500
Product Specifications
UPC: 07498380239
Standard Package: 500
Approval: UL 486A/486B, CSA C22.2
Additional Information: RoHS Compliant; Overall Dimension 1.05 Inch L x 0.58 Inch W; Clearance 0.44 Inch; Wire Strip Length 9/32 Inch; Material Electro Tin Plated Copper; Barrel Type Brazed Seam, Standard; Voltage Rating 2000 V
Full Technical Description: Beveled Type; Metallic Color; 14 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A/486B, CSA C22.2 Approval; 302 Deg F Temperature Rating; 500 Standard Package; 3/8 Inch Stud Size; Non-Insulated Insulation Type; PAN-TERM[R] Brand; RoHS Compliant; Overall Dimension 1.05 Inch L X 0.58 Inch W; Clearance 0.44 Inch; Wire Strip Length 9/32 Inch; Material Electro Tin Plated Copper; Barrel Type Brazed Seam, Standard; Voltage Rating 2000 V
