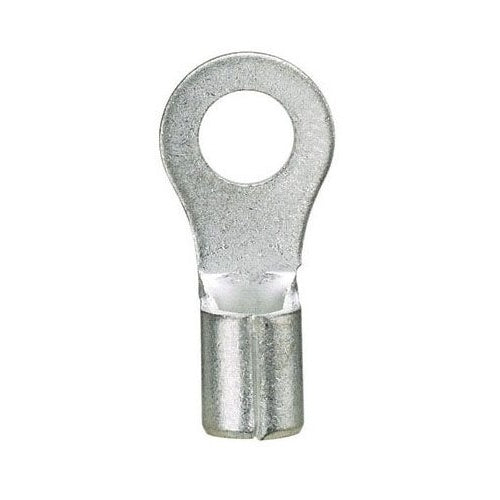

T&B C73 Non-Insulated Ring Terminal 12-10 Bolt 3/8"
Product Specifications
UPC: 78621081084
Temperature Rating: 150 Deg C
Standard Package: 500
Approval: UL 486-A, CSA 22.2
Additional Information: Dimension 1.1 Inch L x 0.59 Inch W x 0.04 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
Catalog Number: C73
Model: C
Type: Standard
Minimum Conductor Size: 12 AWG
Maximum Conductor Size: 10 AWG
Color: Metallic
Insulation Type: Non-Insulated
Stud Size: 3/8 Inch
Catalog Description: NON-INSULATED RING TERMINAL, LENGTH 1.10 INCHES, WIDTH .59 INCHES, BOLT HOLE 3/8 INCH, WIRE RANGE #12-#10 AWG, COPPER, TIN PLATED, 500 PACK
Category: Small Terminals & Connectors
Full Technical Description: Standard Type; Metallic Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 150 Deg C Temperature Rating; 500 Standard Package; 3/8 Inch Stud Size; Non-Insulated Insulation Type; Dimension 1.1 Inch L X 0.59 Inch W X 0.04 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; C Model
