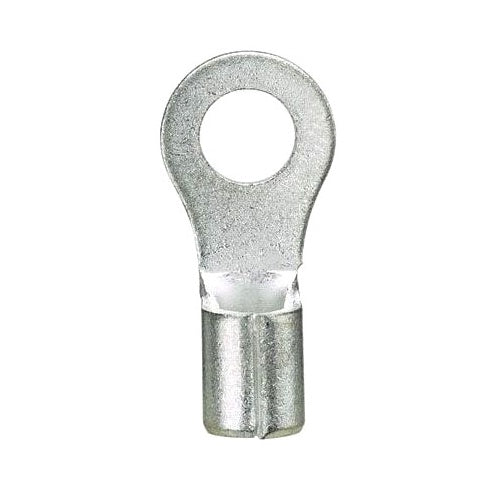

Panduit P14-8R-M Ring Non-Insulated 16-14Awg #8 Stud Pk1000

Overview

Panduit P14-8R-M Ring Non-Insulated 16-14Awg #8 Stud Pk1000

Product Specifications

• UPC: 07498380219
• Stud Size: #8
• Temperature Rating: 302 Deg F
• Standard Package: 1000
• Approval: UL 486A/B, UL (Canada and US), CSA C22.2
• Additional Information: RoHS Compliant; Barrel Type Brazed Seam; Voltage Rating 2000 Volt; Overall Dimension 0.71 Inch Length x 0.79 Inch Width x 0.03 Inch Thickness; Wire Strip Length 9/32 Inch; Material Electro Tin Plated Copper
• Catalog Number: P14-8R-M
• Brand Name: Pan-Term[R]
• Model: P-R
• Type: Standard
• Minimum Conductor Size: 18 AWG
• Maximum Conductor Size: 14 AWG
• Color: Metallic
• Insulation Type: Non-Insulated
• Catalog Description: RING TERMINAL, 18 14 AWG, #8 STUD SIZE, NON-INSULATED, BULK PACKAGE.
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Metallic Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/B, UL (Canada and Us), CSA C22.2 Approval; 302 Deg F Temperature Rating; 1000 Standard Package; #8 Stud Size; Non-Insulated Insulation Type; PAN-TERM[R] Brand; RoHS Compliant; Barrel Type Brazed Seam; Voltage Rating 2000 Volt; Overall Dimension 0.71 Inch Length X 0.79 Inch Width X 0.03 Inch Thickness; Wire Strip Length 9/32 Inch; Material Electro Tin Plated Copper; P-R Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Ring Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983802197
• SKU Name: pand p148rm
