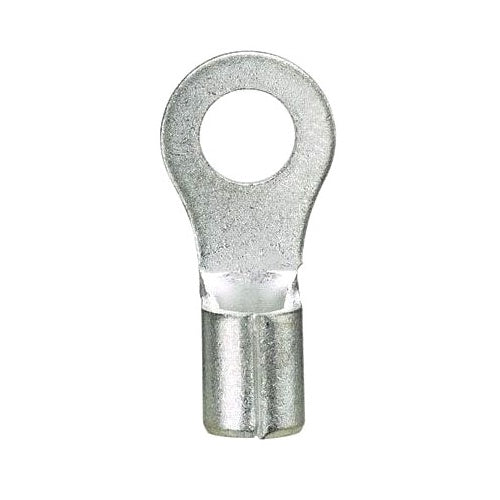

T&B B86 Non-Insulated Ring Terminal 18-14 No8 Metal
Product Specifications
UPC: 78621080936
Additional Information: Size 0.75 Inch Length x 0.31 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
Catalog Number: B86
Minimum Conductor Size: 18 AWG
Maximum Conductor Size: 14 AWG
Insulation Type: Non-Insulated
Stud Size: #8
Temperature Rating: 150 Deg C
Standard Package: 1000 per Pack
Approval: UL 486A/B, CSA 22.2
Catalog Description: NON-INSULATED RING TERMINAL, LENGTH .75 INCHES, WIDTH .31 INCHES, BOLT HOLE #8, WIRE RANGE #18-#14 AWG, COPPER, TIN PLATED, 1,000 PACK
Category: Small Terminals & Connectors
Full Technical Description: 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 150 Deg C Temperature Rating; 1000 Per Pack Standard Package; #8 Stud Size; Non-Insulated Insulation Type; Size 0.75 Inch Length X 0.31 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
