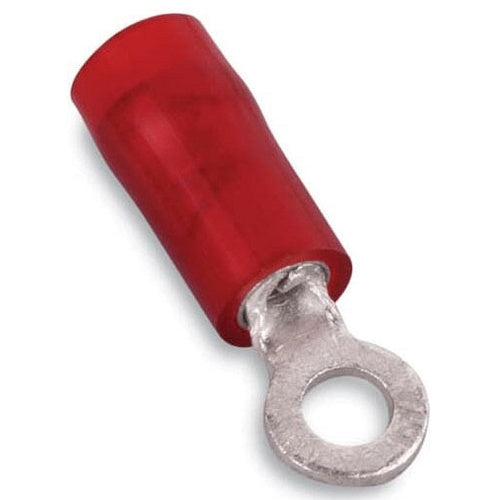

Panduit PN18-8R-M Ring Nylon 22-18Awg #8 Stud Pk1000
Product Specifications
UPC: 07498380005
Stud Size: #8
Temperature Rating: 221 Deg F
Standard Package: 1000
Approval: UL 486A/486B, CSA C22.2
Additional Information: Overall Dimension 0.86 Inch L x 0.31 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Insulation Grip Sleeve; Voltage Rating 600 V; ROHS Compliant
Catalog Number: PN18-8R-M
Brand Name: Pan-Term[R]
Model: PN-R
Type: Standard
Minimum Conductor Size: 22 AWG
Maximum Conductor Size: 18 AWG
Color: Red
Insulation Type: Nylon Insulated
Catalog Description: THE PN18-8R-M PAN-TERM TERMINAL IS A NYLON INSULATED, RING TERMINAL. THE METAL INSULATION GRIP SLEEVE CRIMPS TO WIRE INSULATION, PROVIDING PROTECTION AND STRAIN RELIEF TO THE CRIMP JOINT FOR HIGH VIBRATION APPLICATIONS. INTERNAL BARREL SERRATIONS ASSURE GOOD WIRE CONTACT AND MAXIMUM TENSILE STRENGTH.
Category: Small Terminals & Connectors
Full Technical Description: Standard Type; Red Color; 22 AWG min. Conductor Size; 18 AWG Max. Conductor Size; UL 486A/486B, CSA C22.2 Approval; 221 Deg F Temperature Rating; 1000 Standard Package; #8 Stud Size; Nylon Insulated Insulation Type; PAN-TERM[R] Brand; Overall Dimension 0.86 Inch L X 0.31 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Insulation Grip Sleeve; Voltage Rating 600 V; RoHS Compliant; PN-R Model
