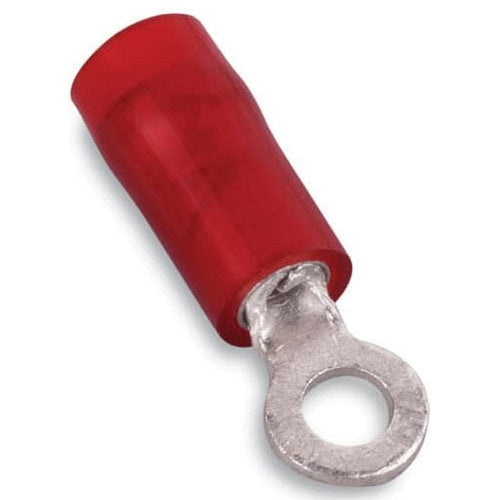

T&B RA833 Insulated Nylon Ring Terminal 22-16 Bolt No8 Red
Product Specifications
UPC: 78621081733
Temperature Rating: 105 Deg C
Standard Package: 1000
Approval: UL 486-A, CSA 22.2
Additional Information: Dimension 0.83 Inch L x 0.26 Inch W x 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
Catalog Number: RA833
Model: RA
Type: Standard
Minimum Conductor Size: 22 AWG
Maximum Conductor Size: 16 AWG
Color: Red
Insulation Type: Nylon Insulated
Stud Size: #8
Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH .86 INCHES, WIDTH .26 INCHES, MAXIMUM INSULATION .136, BOLT HOLE #8, WIRE RANGE #22-#16 AWG, COLOR RED, COPPER, TIN PLATED
Category: Small Terminals & Connectors
Full Technical Description: Standard Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 1000 Standard Package; #8 Stud Size; Nylon Insulated Insulation Type; Dimension 0.83 Inch L X 0.26 Inch W X 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; RA Model
