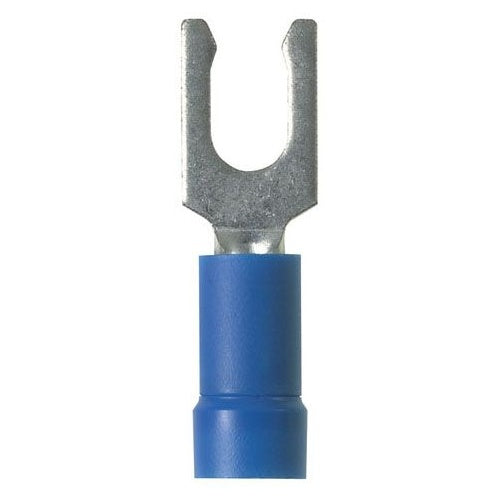

Panduit PV14-8LF-M Locking Fork Terminal Vinyl 18-14Awg #8Std Bp
Product Specifications
UPC: 07498380809
Stud Size: #8
Temperature Rating: 221 Deg F
Standard Package: 1000
Approval: UL 486A/486B, CSA C22.2
Additional Information: Overall Dimension 0.97 Inch L x 0.29 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam; Voltage Rating 600 V; ROHS Compliant
Catalog Number: PV14-8LF-M
Brand Name: Pan-Term[R]
Model: PV-LF
Type: Funnel Entry, Locking
Minimum Conductor Size: 18 AWG
Maximum Conductor Size: 14 AWG
Color: Blue
Insulation Type: Vinyl Insulated
Catalog Description: THE PV14-8LF-M PAN-TERM TERMINAL IS A VINYL INSULATED, LOCKING FORK TERMINAL. BRAZED SEAM PROTECTS TERMINAL BARREL FROM SPLITTING DURING THE CRIMP PROCESS. BARREL SERRATIONS ASSURE GOOD WIRE CONTACT AND MAXIMUM TENSILE STRENGTH.
Category: Small Terminals & Connectors
Full Technical Description: Funnel Entry, Locking Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/486B, CSA C22.2 Approval; 221 Deg F Temperature Rating; 1000 Standard Package; #8 Stud Size; Vinyl Insulated Insulation Type; PAN-TERM[R] Brand; Overall Dimension 0.97 Inch L X 0.29 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam; Voltage Rating 600 V; RoHS Compliant; PV-LF Model
