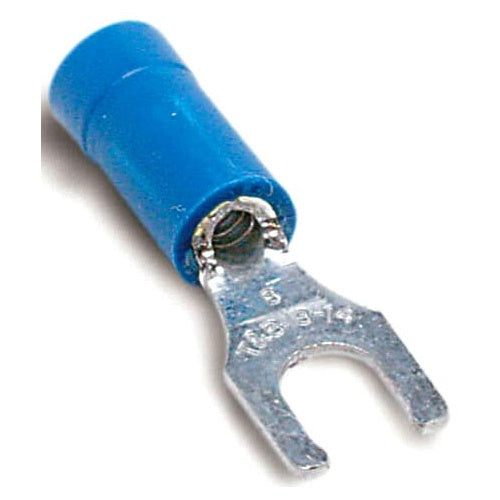

T&B RB2237 Insulated Vinyl Locking Fork Terminal 18-14 Bolt No8

Overview

T&B RB2237 Insulated Vinyl Locking Fork Terminal 18-14 Bolt No8

Product Specifications

• UPC: 78621081945
• Temperature Rating: 105 Deg C
• Approval: UL, CSA
• Additional Information: Size 0.97 Inch L x 0.29 Inch W; Finish Electroplated Tin
• Catalog Number: RB2237
• Model: RB
• Type: Locking
• Minimum Conductor Size: 18 AWG
• Maximum Conductor Size: 14 AWG
• Color: Blue
• Insulation Type: Vinyl Insulated
• Stud Size: #8
• Catalog Description: VINYL INSULATED LOCKING FORK TERMINAL, LENGTH .97 INCHES, WIDTH .29 INCHES, MAXIMUM INSULATION .170, BOLT HOLE #8, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED, 1,000 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Locking Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; #8 Stud Size; Vinyl Insulated Insulation Type; Size 0.97 Inch L X 0.29 Inch W; Finish Electroplated Tin; RB Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Fork Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210819457
• SKU Name: t&b rb2237
