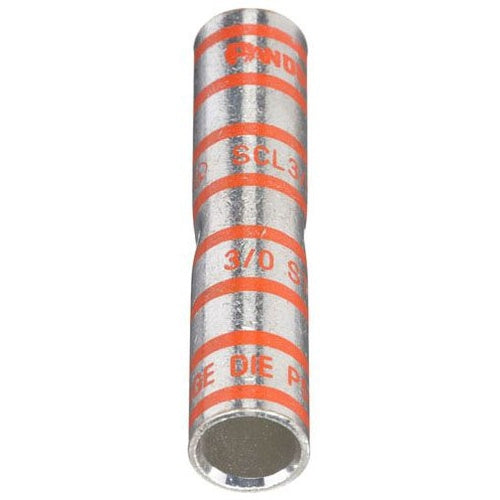

Panduit SCL3/0-X Copper Butt Splice Long 3/0Awg Pkg 10

Overview

Panduit SCL3/0-X Copper Butt Splice Long 3/0Awg Pkg 10

Product Specifications

• UPC: 07498390435
• Length: 3.12 Inch
• Inner Diameter: 0.51 Inch
• Outer Diameter: 0.64 Inch
• Body Material: Tin Plated Copper
• Approval: UL, CSA
• Additional Information: Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: SCL3/0-X
• Model: SCL
• Type: Butt
• Voltage Rating: 35 KV
• Conductor Size: 3/0 AWG
• Conductor Material: Copper
• Color Code: Orange
• Barrel Type: Long
• Catalog Description: COPPER BUTT SPLICE, LONG BARREL, 3/0 AWG WIRE.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; 3.12 Inch; 0.51 Inch Inner Diameter; 0.64 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; Tin Plated Copper Body Material; 3/0 AWG Conductor Size; Orange Color Code; Long Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; RoHS Compliant; SCL Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 074983904358
• SKU Name: pand scl3/0x
