Additional Information: Dimension 1.13 Inch L x 0.39 Inch W x 0.05 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
Catalog Number: 14RBC-8
Model: RBC
Type: Heavy Duty, Funnel Entry
Minimum Conductor Size: 16 AWG
Maximum Conductor Size: 14 AWG
Color: Green
Insulation Type: Vinyl Insulated
Stud Size: #8

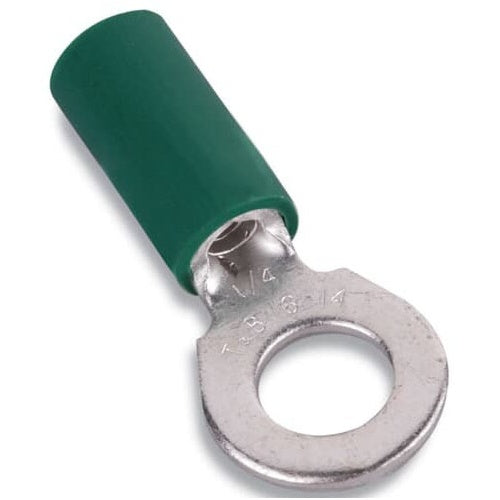

Catalog Description: VINYL-INSULATED HEAVY-DUTY RING TERMINAL, LENGTH 1.13 INCHES, WIDTH 0.39 INCH, MAXIMUM INSULATION 0.21, BOLT SIZE #8, WIRE RANGE 16-14 HEAVY DUTY AWG, COLOR GREEN, COPPER, TIN PLATED
Category: Small Terminals & Connectors
Full Technical Description: Heavy Duty, Funnel Entry Type; Green Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 50 Standard Package; #8 Stud Size; Vinyl Insulated Insulation Type; Dimension 1.13 Inch L X 0.39 Inch W X 0.05 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; RBC Model
