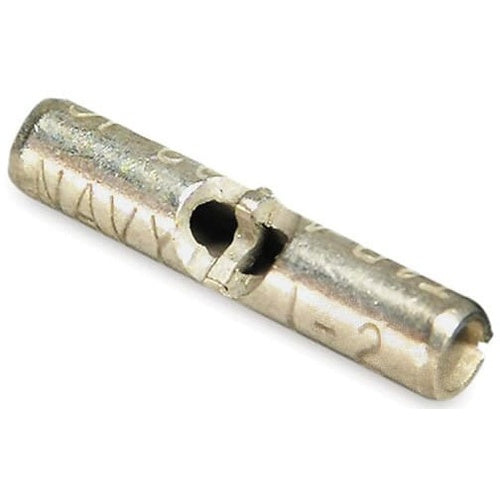

T&B 2G21 Non-Insulated Butt Splice 2-1 Awg Len 1.72
Product Specifications
UPC: 78621080017
Material: Electro Tin Plated Copper
Temperature Rating: 150 Deg C
Standard Package: 50 per Outer Pack
Approval: UL, CSA
Catalog Number: 2G21
Type: Butt
Voltage Rating: 600 Volt
Length: 1.72 Inch
Barrel Outer Diameter: 0.47 Inch
Conductor Size: 2 to 1 AWG
Insulation Type: Non-Insulated
Color: Metallic
Catalog Description: NON-INSULATED BUTT SPLICE, LENGTH 1.72 INCHES, WIDTH 0.47 INCH, WIRE RANGE 2-1 AWG, COPPER, TIN PLATED
Category: Large Terminals & Connectors
Full Technical Description: Butt Type; Electro Tin Plated Copper Material; Metallic Color; 1.72 Inch; UL, CSA Approval; 600 Volt Voltage Rating; 150 Deg C Temperature Rating; 50 Per Outer Pack Standard Package; 2 to 1 AWG Conductor Size; Non-Insulated Insulation Type; 0.47 Inch Barrel Outer Diameter
