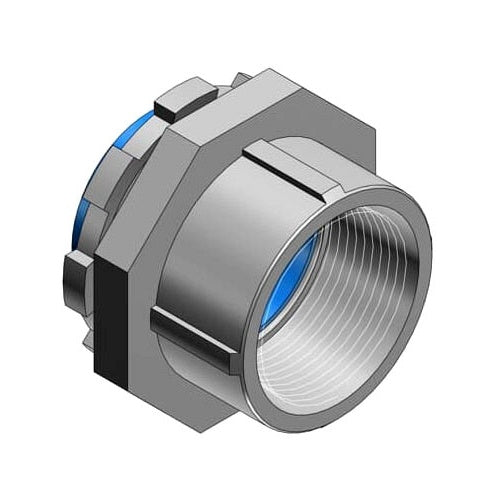

T&B 375AL 2" Connector Bullet Hub Type Aluminum

Overview

T&B 375AL 2" Connector Bullet Hub Type Aluminum

Product Specifications

• UPC: 78621082920
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NFPA 70, JIC EGP1, JIC EMP 1, A-A-50553; Enclosure NEMA FB-1; Maximum Wall Thickness 5/16 Inch; Temperature Rating 105 Deg C
• Catalog Number: 375AL
• Type: Bulkhead, Tapered Female Threaded
• Trade Size: 2 Inch
• Size: 3-5/8 Inch Dia
• Constructional Feature: Corrosion Resistant, Dusttight, Raintight, Watertight, Hazardous Location
• Ground Type: Locknut Bonding/Grounding Screw
• Material: Copper Free Aluminum Hub, Zinc Electroplated Chromate Coated Hardened Steel Locknut/Screw, Neoprene O-Ring
• Approval: UL 514B, CSA C22.2
• Catalog Description: 2 INCH HUB CONNECTOR, ALUMINUM, FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Bulkhead, Tapered Female Threaded Type; Copper Free Aluminum Hub, Zinc Electroplated Chromate Coated Hardened Steel Locknut/Screw, Neoprene O-ring Material; 3-5/8 Inch Dia Size; Rigid Conduit/Imc Used on; UL 514B, CSA C22.2 Approval; Locknut Bonding/Grounding Screw; 2 Inch Trade Size; Corrosion Resistant, Dusttight, Raintight, Watertight, Hazardous Location; BULLET[R] Brand; Applicable Standard NFPA 70, JIC EGP1, JIC EMP 1, A-A-50553; Enclosure NEMA FB-1; Maximum Wall Thickness 5/16 Inch; Temperature Rating 105 Deg C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 786210829203
• SKU Name: t&b 375al

Resources

• Manufacturer Spec Sheet
