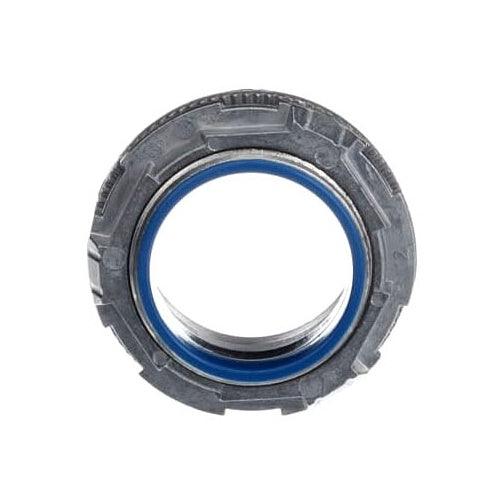

T&B H200A 2" Hub Connector W/Insulated Throat Aluminum

Overview

T&B H200A 2" Hub Connector W/Insulated Throat Aluminum

Product Specifications

• UPC: 78621090348
• Approval: UL, CSA
• Used On: Rigid/IMC
• Additional Information: Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
• Catalog Number: H200A
• Brand Name: T&B
• Type: Tapered Female Threaded, Bulkhead
• Throat Type: Thermoplastic Insulated
• Trade Size: 2 Inch
• Size: 3-1/4 Inch Diameter x 1-15/16 Inch Length
• Constructional Feature: NEMA 3R/4/13, Water Tight, Dust Tight
• Material: Copper-Free Aluminum (Hub/Locknut), Nitrile (Sealing Ring)
• Catalog Description: 2 INCH ALUMINUM, HUB CONNECTOR WITH THERMOPLASTIC INSULATING THROAT, SEALING RING NITRILE (BUNA-N) FOR USE WITH RIGID/IMC CONDUIT
• Category: Elbows-Couplings-Nipples - Aluminum
• Full Technical Description: Tapered Female Threaded, Bulkhead Type; Copper-Free Aluminum (Hub/Locknut), Nitrile (Sealing Ring) Material; 3-1/4 Inch Diameter X 1-15/16 Inch Length Size; Rigid/Imc Used on; UL, CSA Approval; 2 Inch Trade Size; NEMA 3R/4/13, Water Tight, Dust Tight; Thermoplastic Insulated Throat Type; Bullet [R] Brand; Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 786210903484
• SKU Name: t&b h200a

Resources

• Manufacturer Spec Sheet
