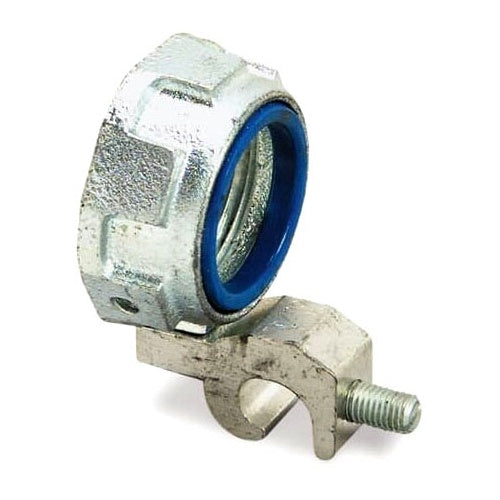

T&B 3876 2-1/2" Insulated Ground Bushing W/14-4 Range
Product Specifications
UPC: 78621003876
Diameter: 3.516 Inch
Height: 0.94 Inch
Material: Electro Zinc Plated Cast Malleable Iron
Standard Package: 10
Approval: UL, CSA
Used On: Rigid Conduit/IMC
Additional Information: Insulator Material Thermoplastic; Throat Size 2.222 Inch; Temperature Rating 150 Deg C
Catalog Number: 3876
Model: 3870
Type: Threaded, Set Screw
Trade Size: 2-1/2 Inch
Wire Size: 14 to 4 AWG
Lug Type: Lay-In, Tin Plated Aluminum
Conductor Material: Copper/Aluminum
Throat Type: Thermoplastic Insulated
Catalog Description: 2-1/2 INCH THREADED INSULATED GROUNDING BUSHING, ALUMINUM, ELECTRO ZINC PLATED, WIRE RANGE 14 TO 4, THERMOPLASTIC INSULATOR FOR USE WITH RIGID/IMC CONDUIT
Category: Rigid Conduit Fittings - Steel
Full Technical Description: Threaded, Set Screw Type; Electro Zinc Plated Cast Malleable Iron Material; 0.94 Inch; Rigid Conduit/Imc Used on; 14 to 4 AWG Wire Size; Copper/Aluminum Conductor Material; UL, CSA Approval; 3.516 Inch Diameter; 10 Standard Package; 2-1/2 Inch Trade Size; Thermoplastic Insulated Throat Type; Lay-in, Tin Plated Aluminum Lug Type; Insulator Material Thermoplastic; Throat Size 2.222 Inch; Temperature Rating 150 Deg C; 3870 Model
