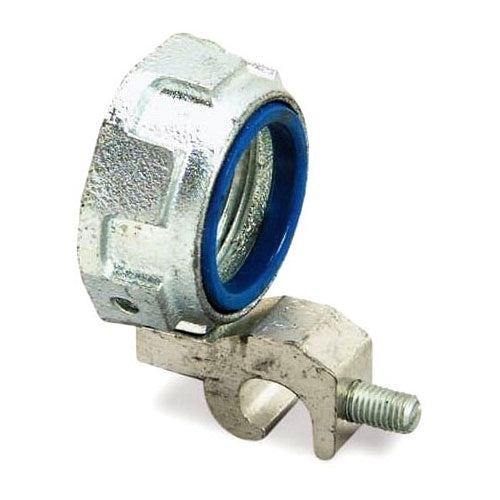

T&B 3886 2-1/2" Insulated Ground Bushing W/8-2/0 Range
Product Specifications
UPC: 78621003886
Diameter: 3.516 Inch
Height: 0.94 Inch
Material: Electro Zinc Plated Cast Malleable Iron
Standard Package: 10 per Outer Pack
Approval: UL, CSA
Used On: IMC/Rigid Conduit
Additional Information: Throat Size 2.222 Inch; Insulator Material Thermoplastic; Temperature Rating 150 Deg C
Catalog Number: 3886
Brand Name: T&B
Type: Threaded, Set Screw
Trade Size: 2-1/2 Inch
Wire Size: 8 to 2/0 AWG
Lug Type: Lay-In, Tin Plated Aluminum
Conductor Material: Copper/Aluminum
Throat Type: Insulated
Catalog Description: 2-1/2 INCH THREADED INSULATED GROUNDING BUSHING, IRON, ELECTRO ZINC PLATED, WIRE RANGE 8 TO 2/0, THERMOPLASTIC INSULATOR FOR USE WITH RIGID/IMC CONDUIT
Category: Rigid Conduit Fittings - Steel
Full Technical Description: Threaded, Set Screw Type; Electro Zinc Plated Cast Malleable Iron Material; 0.94 Inch; Imc/Rigid Conduit Used on; 8 to 2/0 AWG Wire Size; Copper/Aluminum Conductor Material; UL, CSA Approval; 3.516 Inch Diameter; 10 Per Outer Pack Standard Package; 2-1/2 Inch Trade Size; Insulated Throat Type; Lay-in, Tin Plated Aluminum Lug Type; Throat Size 2.222 Inch; Insulator Material Thermoplastic; Temperature Rating 150 Deg C
