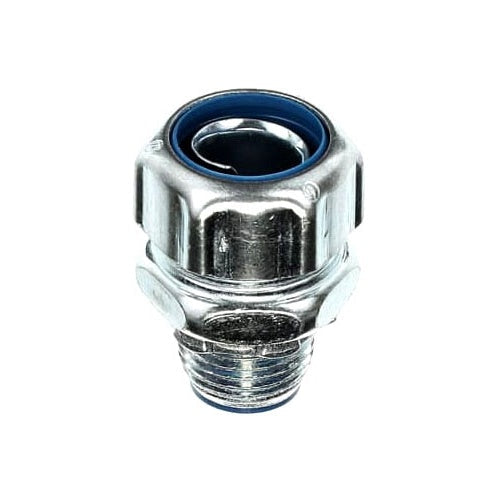

T&B 5332 1/2" Insulated Liquidtight Connector Straight

Overview

T&B 5332 1/2" Insulated Liquidtight Connector Straight

Product Specifications

• UPC: 78621005332
• Used On: Liquid Tight Flexible Metallic Conduit
• Additional Information: RoHS Compliant; Overall Dimension 1-3/8 Inch Diameter x 2.125 Inch Length; Construction Type External Thread; Temperature Rating -13 to 221 Deg F; Enclosure Type NEMA 3/3R/4/12/13, IP66, IP67; Application Indoor/Outdoor, Control and Power; Applicable Stan
• Catalog Number: 5332
• Model: 5300
• Type: Straight
• Throat Type: Insulated
• Trade Size: 1/2 Inch
• Material: Electro Zinc Plated/Chromate Coated Steel
• Standard Package: 100
• Approval: UL 514B, CE, CSA C22.2
• Catalog Description: 1/2 INCH STRAIGHT STEEL INSULATED LIQUIDTIGHT CONNECTOR
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Electro Zinc Plated/Chromate Coated Steel Material; Liquid Tight Flexible Metallic Conduit Used on; UL 514B, CE, CSA C22.2 Approval; 100 Standard Package; 1/2 Inch Trade Size; Insulated Throat Type; RoHS Compliant; Overall Dimension 1-3/8 Inch Diameter X 2.125 Inch Length; Construction Type External Thread; Temperature Rating -13 to 221 Deg F; Enclosure Type NEMA 3/3R/4/12/13, IP66, IP67; Application Indoor/Outdoor, Control and Power; Applicable Standard Federal Specification AA-50552/H-28; 5300 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210053325
• SKU Name: t&b 5332

Resources

• Manufacturer Spec Sheet
• Technical Drawing
