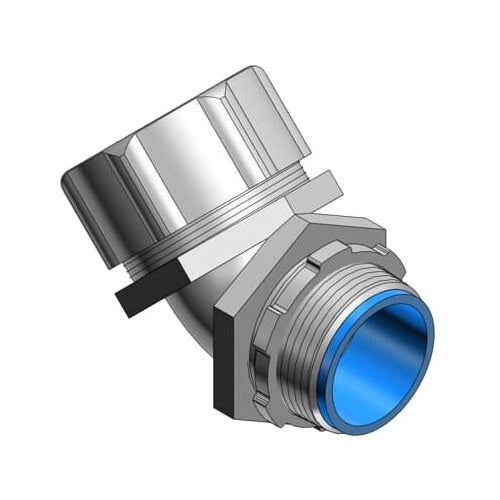

T&B 5342 1/2" Insulated 45 Deg Liquidtight Connector

Overview

T&B 5342 1/2" Insulated 45 Deg Liquidtight Connector

Product Specifications

• UPC: 78621005342
• Used On: Liquid Tight Flexible Metallic Conduit
• Additional Information: RoHS Compliant; Overall Dimension 1-3/8 Inch Diameter x 2.437 Inch Length; Construction Type External Thread; Temperature Rating -13 to 221 Deg F; Enclosure Type NEMA 3/3R/4/12/13, IP66, IP67; Application Indoor/Outdoor, Control and Power; Applicable Stan
• Catalog Number: 5342
• Model: 5300
• Type: 45 Degree
• Throat Type: Insulated
• Trade Size: 1/2 Inch
• Material: Electro Zinc Plated/Chromate Coated Malleable Iron
• Standard Package: 50
• Approval: UL 514B, CE, CSA C22.2
• Catalog Description: 1/2 INCH 45 DEGREE MALLEABLE IRON INSULATED LIQUIDTIGHT CONNECTOR
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 45 Degree, Threaded Type; Zinc Electroplated/Chromate Coated Malleable Iron (Body), Thermoplastic Nylon (Sealing Ring/Insulator), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 50 Standard Package; 1/2 Inch Trade Size; Insulated Throat Type; RoHS Compliant; Diameter 1-3/8 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5300 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210053424
• SKU Name: t&b 5342
