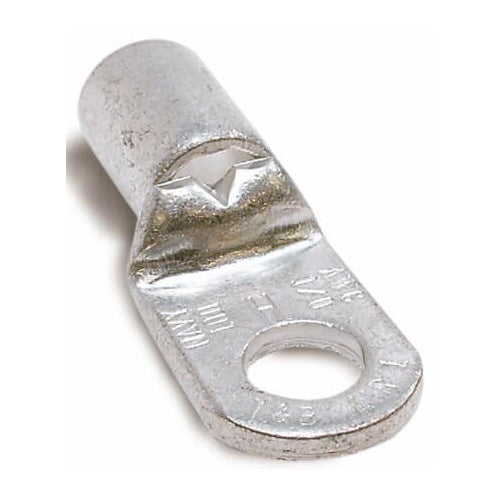

T&B J20-38 Non-Insulated - Tub Ring Terminal 2/0, 3/8,
Product Specifications
UPC: 78621080370
Standard Package: 10
Approval: UL 486-A, CSA 22.2
Additional Information: Dimension 1.84 Inch L x 0.83 Inch W x 0.06 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
Catalog Number: J20-38
Model: J
Type: Standard
Maximum Conductor Size: 2/0 AWG
Color: Metallic
Insulation Type: Non-Insulated
Stud Size: 3/8 Inch
Temperature Rating: 150 Deg C
Catalog Description: NON-INSULATED TUBULAR RING TERMINAL, LENGTH 1.84 INCHES, WIDTH .83 INCHES, BOLT HOLE 3/8 INCH, WIRE RANGE 1/0AN-2/0, COPPER, TIN PLATED
Category: Large Terminals & Connectors
Full Technical Description: Standard Type; Metallic Color; 2/0 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 150 Deg C Temperature Rating; 10 Standard Package; 3/8 Inch Stud Size; Non-Insulated Insulation Type; Dimension 1.84 Inch L X 0.83 Inch W X 0.06 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; J Model
