Additional Information: Size 1.99 Inch Length x 0.84 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
Catalog Number: J973
Type: Large, Tubular
Minimum Conductor Size: 1/0 AWG (Aircraft Wire)
Maximum Conductor Size: 2/0 AWG
Insulation Type: Non-Insulated
Stud Size: 3/8 Inch
Temperature Rating: 150 Deg C
Standard Package: 50 per Pack

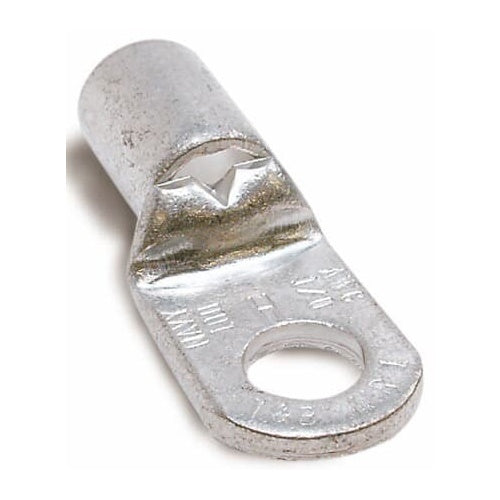

Catalog Description: NON-INSULATED TUBULAR RING TERMINAL, LENGTH 1.99 INCHES, WIDTH .84 INCHES, BOLT HOLE 3/8 INCH, WIRE RANGE 1/0AN-2/0, COPPER, TIN PLATED, 50 PACK
Category: Large Terminals & Connectors
Full Technical Description: Large, Tubular Type; 1/0 AWG (Aircraft Wire) min. Conductor Size; 2/0 AWG Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 150 Deg C Temperature Rating; 50 Per Pack Standard Package; 3/8 Inch Stud Size; Non-Insulated Insulation Type; Size 1.99 Inch Length X 0.84 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
