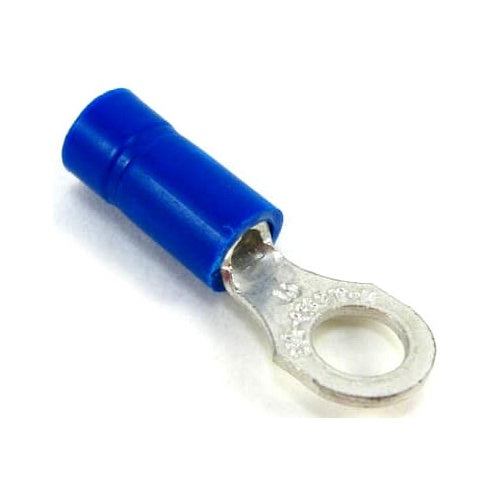

T&B RB877M Insulated Vinyl Ring Terminal 18-14 No10 Blue Mylar

Overview

T&B RB877M Insulated Vinyl Ring Terminal 18-14 No10 Blue Mylar

Product Specifications

• UPC: 78621086247
• Stud Size: #10
• Temperature Rating: 105 DEG C
• Standard Package: 1000 PER MYLAR TAPE
• Approval: UL 486-A, CSA 22.2
• Additional Information: DIMENSION 0.97 INCH LENGTH X 0.31 INCH WIDTH X 0.03 INCH THICK; BRAZED SEAM SERRATED BARREL; FINISH ELECTROPLATED TIN; WITH MYLAR TAPE
• Catalog Number: RB877M
• Brand Name: Sta-Kon.
• Model: RB
• Type: STANDARD
• Minimum Conductor Size: 18 AWG
• Maximum Conductor Size: 14 AWG
• Color: BLUE
• Insulation Type: VINYL INSULATED
• Catalog Description: VINYL INSULATED RING TERMINAL, LENGTH .97 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION .170, BOLT HOLE #10, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED, ON MYLAR TAPE, 1,000 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 1000 Per Mylar Tape Standard Package; #10 Stud Size; Vinyl Insulated Insulation Type; Sta-Kon. Brand; Dimension 0.97 Inch Length X 0.31 Inch Width X 0.03 Inch Thick; Brazed Seam Serrated Barrel; Finish Electroplated Tin; With Mylar Tape; RB Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210862477
• SKU Name: t&b rb877m
