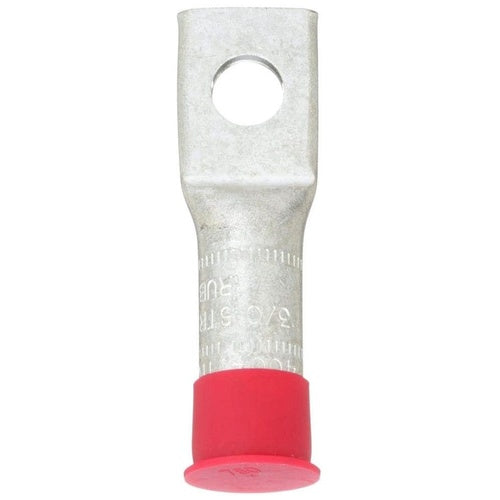

3M 40041 Scotchlok Aluminum 1-Hole Lug, Up To 35 Kv, 3/0 Awg, Ruby

Overview

3M 40041 Scotchlok Aluminum 1-Hole Lug, Up To 35 Kv, 3/0 Awg, Ruby

Product Specifications

• UPC: 05400713491
• Pad Size: 1.281 INCH L X 1.065 INCH W
• Number Of Pad Holes: 1
• Stud Size: 1/2 INCH
• Color: RUBY
• Die Index: 167/467
• Material: ALUMINUM
• Overall Length: 3.437 INCH
• Approval: UL
• Additional Information: INSIDE DIAMETER 0.484 INCH; OUTSIDE DIAMETER 0.76;APPLICATION INDOOR, OUTDOOR; OPERATING TEMPERATURE 194 F
• Catalog Number: 40041
• Brand Name: Scotchlok[T]
• Model: 40000
• Voltage Rating: 35 KV
• Conductor Material: ALUMINUM/COPPER
• Conductor Size: 3/0 AWG
• Barrel Type: STANDARD
• Barrel Length: 1.5 INCH
• Catalog Description: 3M SCOTCHLOK 40000 1 HOLE COMPRESSION LUG IS SUITABLE FOR USE ON COPPER OR ALUMINUM CONDUCTORS. THE LUG HAS A STANDARD BARREL THAT ENSURES A SECURE FIT. ALUMINUM CONSTRUCTION OFFERS HIGH CONDUCTIVITY AND AN ELECTRO TIN PLATED FINISH RESISTS CORROSION. IT IS RATED FOR 35 KV VOLTAGE APPLICATIONS.
• Category: Large Terminals & Connectors
• Full Technical Description: Aluminum Material; Ruby Color; 3.437 Inch Overall Length; 1.5 Inch Barrel Length; Aluminum/Copper Conductor Material; UL Approval; 35 kV Voltage Rating; 3/0 AWG Conductor Size; 1/2 Inch Stud Size; 167/467 Die Index; 1.281 Inch L X 1.065 Inch W Pad Size; 1 Pad Hole(S); Standard Barrel Type; SCOTCHLOK[T] Brand; Inside Diameter 0.484 Inch; Outside Diameter 0.76;Application Indoor, Outdoor; Operating Temperature 194 F; 40000 Model
• Made In Usa: Yes
• Manufacturer: 3M ELECTRICAL MARKET ELECTRICAL PRODUCTS
• Manufacturer Brand: 3M Electrical Products
• Sub Category: Compression Cable Lug
• Unspsc: 31200000
• UPC 12 Digit: 054007134916
• SKU Name: 3m 40041
