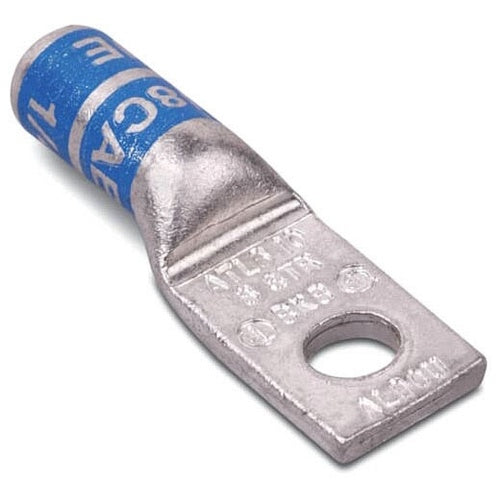

Blackburn ATL30-12 3/0 Aluminum/Copper Compression Lug

Overview

Blackburn ATL30-12 3/0 Aluminum/Copper Compression Lug

Product Specifications

• UPC: 78378661098
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Ruby
• Die Index: 60
• Material: Tin Plated Seamless Aluminum
• Overall Length: 3-1/8 Inch
• Approval: UL, CSA
• Catalog Number: ATL30-12
• Model: ATL
• Voltage Rating: 35 KV
• Conductor Material: Aluminum/Copper
• Conductor Size: 3/0 AWG Stranded
• Barrel Type: Standard, Straight
• Barrel Length: 1-11/32 Inch
• Pad Size: 1-3/8 Inch L x 1-1/16 Inch W x 7/32 Inch Thk
• Catalog Description: TYPE ALUMINUM ONE-HOLE LUG, MAX 35KV, WIRE SIZE 3/0 STR, 1/2 INCH BOLT HOLE, TIN PLATED, DIE COLOR CODE RUBY
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Aluminum Material; Ruby Color; 3-1/8 Inch Overall Length; 1-11/32 Inch Barrel Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 3/0 AWG Stranded Conductor Size; 1/2 Inch Stud Size; 60 Die Index; 1-3/8 Inch L X 1-1/16 Inch W X 7/32 Inch Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; ATL Model
• Manufacturer: THOMAS & BETTS BLACKBURN
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 783786610983
• SKU Name: atl3012 blkbrn
