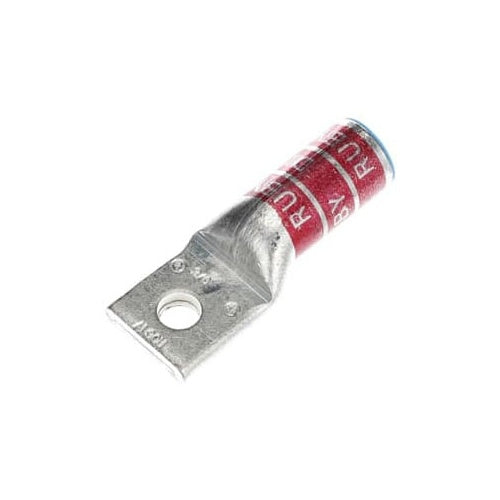

T&B 60144 3/0Awg Ruby 1-Hole Aluminum/Copper Lug

Overview

T&B 60144 3/0Awg Ruby 1-Hole Aluminum/Copper Lug

Product Specifications

• UPC: 78621060144
• Color: Ruby
• Die Index: 60
• Material: High Conductivity Electro Tin Plated Wrought Aluminum
• Overall Length: 3.15 Inch
• Approval: UL, CSA
• Additional Information: Temperature Rating 90 Deg C; Includes Blind End Inspection Hole
• Catalog Number: 60144
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Aluminum/Copper
• Conductor Size: 3/0 AWG (Code)
• Barrel Type: Long, Straight
• Pad Size: 1.41 Inch Length x 1.06 Inch Width x 0.22 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Catalog Description: ALUMINUM ONE-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, 3/0 AWG WIRE, 1/2 INCH BOLT SIZE, TIN PLATED, DIE CODE 60, DIE COLOR CODE RUBY.
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Electro Tin Plated Wrought Aluminum Material; Ruby Color; 3.15 Inch Overall Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 3/0 AWG (Code) Conductor Size; 1/2 Inch Stud Size; 60 Die Index; 1.41 Inch Length X 1.06 Inch Width X 0.22 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Temperature Rating 90 Deg C; Includes Blind End Inspection Hole
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210601441
• SKU Name: t&b 60144
