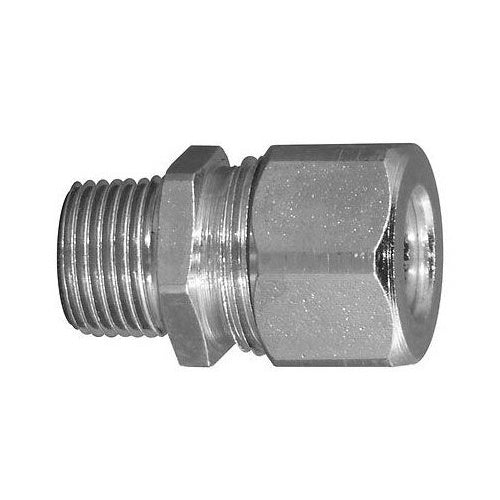

Appleton CG-87100S 1" Steel Straight Cord Connector

Overview

Appleton CG-87100S 1" Steel Straight Cord Connector

Product Specifications

• UPC: 78138144948
• Catalog Number: CG-87100S
• Model: CG
• Type: Straight
• Trade Size: 1 Inch
• Material: Machined Steel (Body/Cap), Neoprene (Sealing Grommet), Steel (Washer)
• Approval: UL, CSA
• Used On: Wet/Dry Location Sealing Electrical Connection
• Additional Information: Cable Range 0.875 to 1 Inch; Diameter 1.75 Inch; Color Coded Label Red; Enclosure Type Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC/CEC
• Catalog Description: STRAIGHT LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 1 IN, CONDUCTOR RANGE: 7/8 - 1 IN, MATERIAL: MACHINED STEEL, COLOR: RED LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, DIMENSIONS: 1-3/4 IN HEIGHT, STANDARD: CLASS I, DIVISION
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Machined Steel (Body/Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 1.75 Inch Diameter Size; UL 514B, CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 1 Inch Thread Size; 0.875 to 1 Inch Cord Size; Label Color Code Red; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381449489
• SKU Name: app cg87100s .8751.00
