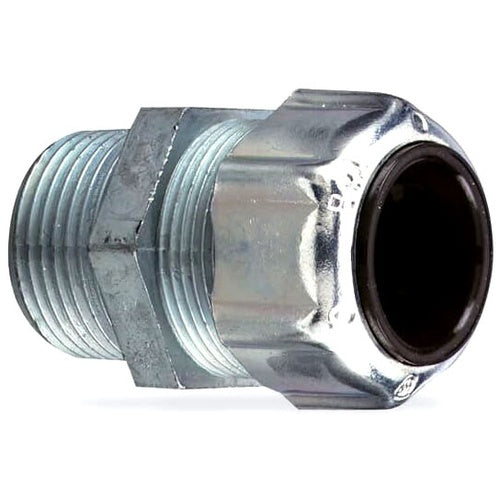

T&B 2547 1" Cord Connector .875-.985 Range

Overview

T&B 2547 1" Cord Connector .875-.985 Range

Product Specifications

• UPC: 78621002547
• Application: Dry/Wet/Hazardous Location
• Additional Information: Constructional Feature Liquidtight, Strain Relief; Minimum Throat Diameter 63/64 Inch; Temperature Rating 105 Deg C
• Catalog Number: 2547
• Brand Name: T&B
• Type: Straight Male
• Thread Size: 1 Inch
• Material: Die-Cast Zinc (Body), Steel (Gland Nut), Neoprene (Bushing)
• Cord Size: 0.875 to 0.985 Inch
• Size: 1-11/16 Inch Diameter x 1-7/8 Inch Length
• Approval: UL, CSA
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1 INCH, STRAIGHT, CORD RANGE 0.875 TO 0.985 INCH, DIE CAST ZINC
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Die-Cast Zinc (Body), Steel (Gland Nut), Neoprene (Bushing) Material; 1-11/16 Inch Diameter X 1-7/8 Inch Length Size; UL, CSA Approval; Dry/Wet/Hazardous Location Application; 1 Inch Thread Size; 0.875 to 0.985 Inch Cord Size; Constructional Feature Liquidtight, Strain Relief; Minimum Throat Diameter 63/64 Inch; Temperature Rating 105 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210025476
• SKU Name: t&b 2547 .875.935
