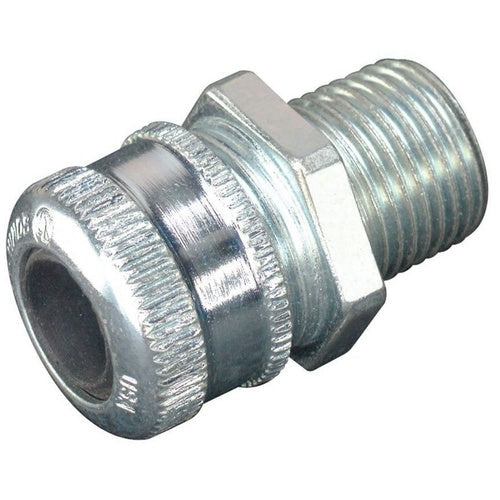

Crouse-Hinds CGB398-SG 1" .875-1.00 Connector

Overview

Crouse-Hinds CGB398-SG 1" .875-1.00 Connector

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CGB CABLE GLAND, CABLE RANGE MIN/MAX: 0.875-1.000", NON-ARMOURED AND TRAY CABLE, NON-ARMOURED, STEEL, GENERAL PURPOSE, SEALING GASKET AND LOCKNUT, 1" NPT
• Full Technical Description: Straight Type; Zinc Electroplated Chromate Steel Material; 2.38 Inch; Non-Armored, Tray Cable Type; UL (Canada and Us) Approval; NEMA 3R Enclosure; 1 Inch Thread Size; -25 to 40 Deg C Operating Temperature; Watertight; 0.88 to 1 Inch Cable Outer Diameter; Applicable Standard NEC 501.10; Thread Type MNPT; Thread Length 0.63 Inch; Outer Diameter 2.38 Inch; Application Hazardous Location; Includes Sealing Gasket; CGB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Cable Gland
• Unspsc: 39121311
• UPC 12 Digit: 782274095417
• SKU Name: crsh cgb398sg

Resources

• Product Brochure
• Manufacturer Spec Sheet
