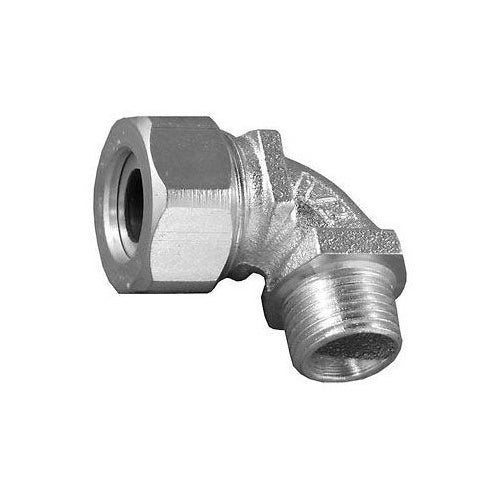

Appleton CG90-2550S 1/2" Steel 90D Cord Connector

Overview

Appleton CG90-2550S 1/2" Steel 90D Cord Connector

Product Specifications

• UPC: 78138144898
• Catalog Number: CG90-2550S
• Model: CG90
• Type: 90 Degree
• Trade Size: 1/2 Inch
• Material: Malleable Iron (Body/Cap), Neoprene (Sealing Grommet), Steel (Washer)
• Approval: UL, CSA
• Used On: Wet/Dry Location Sealing Electrical Connection
• Additional Information: Cable Range 0.25 to 0.375 Inch; Diameter 1.25 Inch; Color Coded Label Green; Enclosure Type Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC/CEC
• Catalog Description: 90 DEG LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 1/2 IN, CONDUCTOR RANGE: 1/4 - 3/8 IN, MATERIAL: MALLEABLE IRON, COLOR: GREEN LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, STANDARD: CLASS I, DIVISION 2, CLASS II, DIVISION 1
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree Male Type; Malleable Iron (Body), Machined Steel (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 1.25 Inch Diameter Size; UL 514B, CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 1/2 Inch Thread Size; 0.25 to 0.375 Inch Cord Size; Label Color Code Green; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381448987
• SKU Name: app cg902550s

Resources

• Manufacturer Spec Sheet
