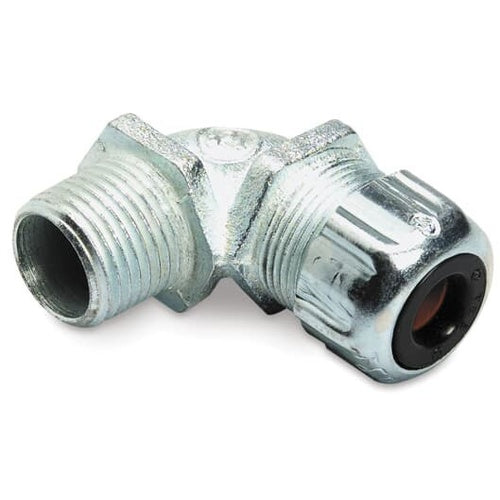

T&B 2268 1/2" 90D Liquidtight Cord Connector .250-.375

Overview

T&B 2268 1/2" 90D Liquidtight Cord Connector .250-.375

Product Specifications

• UPC: 78621002268
• Approval: UL, CSA
• Application: Dry/Wet Hazardous Location
• Additional Information: Constructional Feature Liquidtight, Strain Relief; Temperature Rating 105 Deg C
• Catalog Number: 2268
• Brand Name: T&B
• Model: 2200
• Type: 90 Degree
• Thread Size: 1/2 Inch
• Material: Malleable Iron (Body), Steel (Gland Nut), Neoprene Bushing
• Cord Size: 0.25 to 0.375 Inch
• Size: 1-1/8 Inch Diameter
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1/2 INCH, 90 DEGREE BEND, MEETS COAST GUARD CG293, CORD RANGE 0.250 TO 0.375 INCH, MALLEABLE IRON
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree Type; Malleable Iron (Body), Steel (Gland Nut), Neoprene Bushing Material; 1-1/8 Inch Diameter Size; UL, CSA Approval; Dry/Wet Hazardous Location Application; 1/2 Inch Thread Size; 0.25 to 0.375 Inch Cord Size; Constructional Feature Liquidtight, Strain Relief; Temperature Rating 105 Deg C; 2200 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210022680
• SKU Name: t&b 2268

Resources

• Manufacturer Spec Sheet
