Additional Information: Form Type Form 7; Installation Threaded; Used On Rigid/IMC Conduit; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC, CEC, NEMA FB-1
Catalog Number: LB27
Brand Name: Appleton
Model: LB
Configuration: LB
Hub Size: 3/4 Inch
Number Of Hubs: 2
Hub Location: 90 Degree
Access Opening: Back

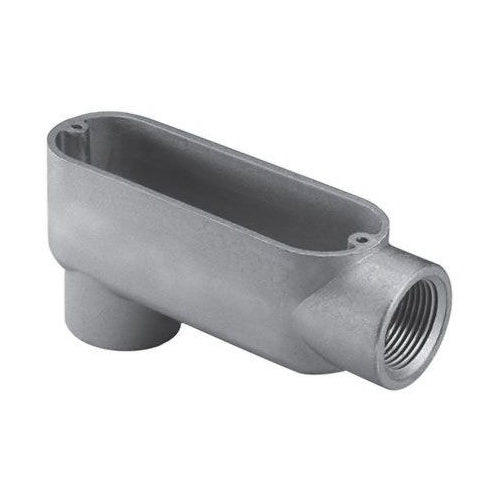

Catalog Description: FM7 UNILETS TYPE LB CONDUIT OUTLET BODY, HUB SIZE: 3/4 IN, FORM: 7, LENGTH: 5.19 IN, HEIGHT: 2-1/2 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED FEMALE T
Category: Steel Conduit Bodies & Covers
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 5.19 Inch Length X 2.5 Inch Height Size; Imc/Rigid Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 7 Form Type; Back Access Opening; FM7[TM] Brand; Wire Size (3) 6 AWG; Capacity 7 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
