Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy
Form Type: Form 7
Approval: UL, CSA
Used On: Rigid Conduit/IMC
Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
Catalog Number: LB27
Brand Name: DURALOY[R]
Model: 7
Access Opening: Back
Configuration: LB
Cover Type: Stainless Steel
Hub Location: 90 Deg
Number Of Hubs: 2

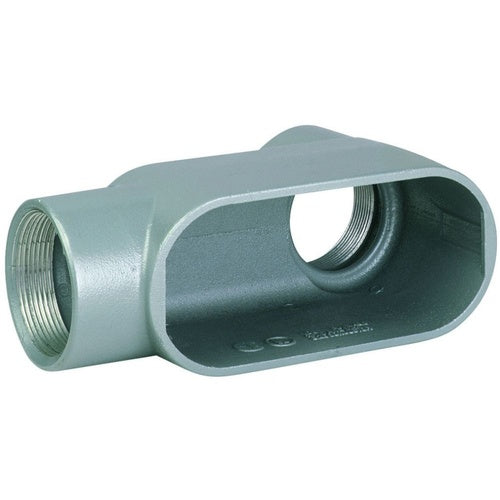

Catalog Description: 3/4" LB HUB, IRON DURALOY 7 CONDUIT BODY
Category: Rigid Conduit Fittings - Steel
Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy Material; 5-3/8 Inch L X 2-1/2 Inch W X 1-3/4 Inch H Size; Rigid Conduit/Imc Used on; 3/4 Inch Hub Size; Threaded (Imc/Rigid) Installation; lb Configuration; 2 Hub(S); UL, CSA Approval; Stainless Steel Cover Type; 90 Deg Hub Location; Form 7 Form Type; Back Access Opening; DURALOY[R]7 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; 7 Model
Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
Manufacturer Brand: Killark Electric Manufacturing Co.
