Additional Information: ROHS COMPATIBLE; CABLE ENTRY TYPE BEVELED, CHAMFERED; WIRE STRIP LENGTH 1 1/16 INCH; TEMPERATURE RATING 90 DEG C; WITH INSPECTION WINDOW
Catalog Number: YA272LN
Brand Name: HYLUG[TM]
Model: YA-2LN
Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 2/0 AWG Stranded (Code)
Barrel Type: Short, Standard, Straight, Skived
Barrel Length: 4.48 Inch

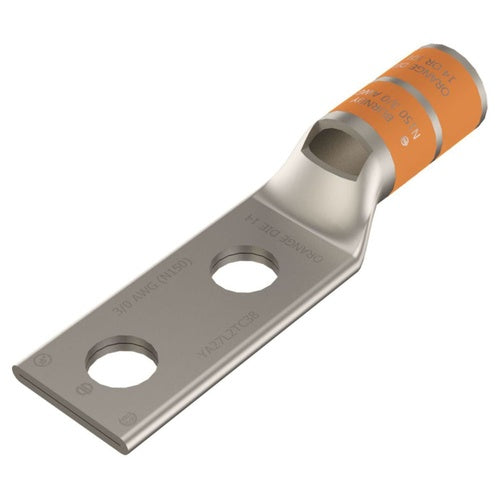

Catalog Description: 3/0 AWG CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, ORANGE COLOR CODE, 14 DIE INDEX.
Category: Large Terminals & Connectors
Full Technical Description: Electro Tin Plated Copper Material; Orange Color; 4.48 Inch Overall Length; 4.48 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 2/0 AWG Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 14 Die Index; 0.91 Inch Width X 0.13 Inch Thickness Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Short, Standard, Straight, Skived Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Cable Entry Type Beveled, Chamfered; Wire Strip Length 1 1/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-2LN Model
Made In Usa: Yes
Manufacturer: BURNDY PRODUCTS
Manufacturer Brand: Burndy Products
Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
