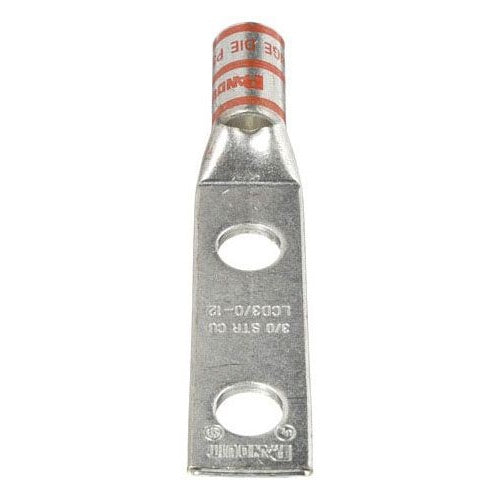

Panduit LCD3/0-12-X Copper Lug 3/0Awg 1.75" Space Wdw Pk10

Overview

Panduit LCD3/0-12-X Copper Lug 3/0Awg 1.75" Space Wdw Pk10

Product Specifications

• UPC: 07498390094
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Orange
• Die Index: P50, 14 (Burndy), 50 (T and B)
• Material: Electro Tin Plated Copper
• Overall Length: 4.49 Inch
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: RoHS Compliant; Wire Strip Length 1-3/16 Inch; Temperature Rating 90 Deg C; Includes Inspection Window
• Catalog Number: LCD3/0-12-X
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 3/0 AWG
• Barrel Type: Standard with Window, Straight
• Barrel Length: 1.14 Inch
• Pad Size: 0.96 Inch W x 0.13 Inch Thk
• Number Of Pad Holes: 2
• Catalog Description: TWO-HOLE, STANDARD BARREL LUG WITH WINDOW, 3/0 AWG WIRE, 1/2 STUD HOLE, 1.75 HOLE SPACING.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Orange Color; 4.49 Inch Overall Length; 1.14 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 kV Voltage Rating; 3/0 AWG Conductor Size; 1/2 Inch Stud Size; P50, 14 (Burndy), 50 (T and B) Die Index; 0.96 Inch W X 0.13 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Standard With Window, Straight Barrel Type; Pan-LUG[TM] Brand; RoHS Compliant; Wire Strip Length 1-3/16 Inch; Temperature Rating 90 Deg C; Includes Inspection Window
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983900947
• SKU Name: pand lcd3/012x
