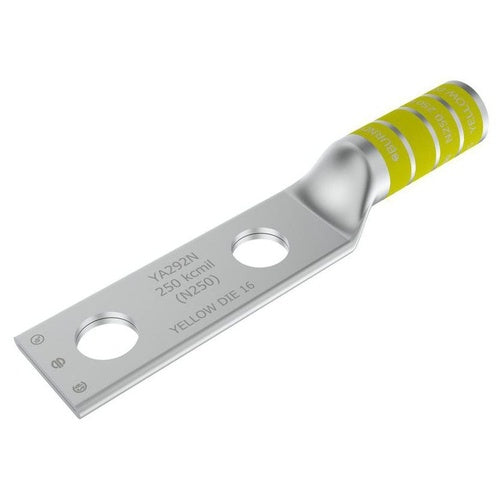

Burndy YA29-2N 250Mcm Copper 2-Hole Lug

Overview

Burndy YA29-2N 250Mcm Copper 2-Hole Lug

Product Specifications

• UPC: 78181050430
• Pad Size: 1.11 Inch Width x 0.16 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Yellow
• Die Index: 16
• Material: Electro Tin Plated Copper
• Overall Length: 5.21 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-11/16 Inch; Temperature Rating 90 Deg C; Less Inspection Window
• Catalog Number: YA292N
• Brand Name: HYLUG[TM], HYDENT[TM]
• Model: YA-2N
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 250 KCMIL Stranded (Code), 250 (Navy)
• Barrel Type: Long, Straight
• Barrel Length: 1.62 Inch
• Catalog Description: 250 KCMIL CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, LONG BARREL INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, YELLOW COLOR CODE, 16 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Yellow Color; 5.21 Inch Overall Length; 1.62 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 250 kcmil Stranded (Code), 250 (Navy) Conductor Size; 1/2 Inch Stud Size; 16 Die Index; 1.11 Inch Width X 0.16 Inch Thickness Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Straight Barrel Type; HYLUG[TM], HYDENT[TM] Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-11/16 Inch; Temperature Rating 90 Deg C; Less Inspection Window; YA-2N Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810504307
• SKU Name: bur ya292n
