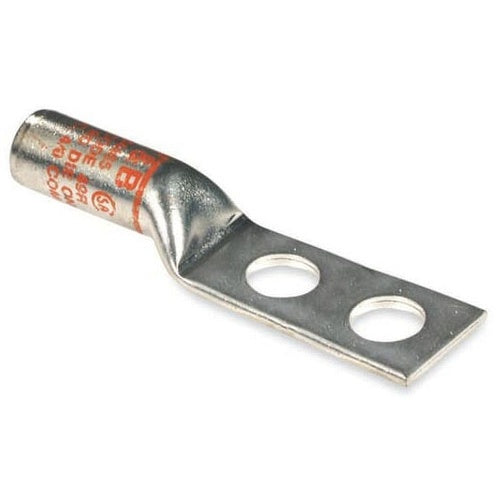

T&B 54480 Copper Tin Plated 2-Hole High-Voltage Lug Long Barrel 250 Ruby

Overview

T&B 54480 Copper Tin Plated 2-Hole High-Voltage Lug Long Barrel 250 Ruby

Product Specifications

• UPC: 78621054480
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Ruby
• Die Index: 60R
• Material: Tin Plated Copper
• Overall Length: 5.17 Inch
• Approval: UL, CSA
• Catalog Number: 54480
• Model: 544
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 250 KCMIL
• Barrel Type: Long, Straight, Tapered
• Pad Size: 3 Inch L x 1.08 Inch W x 0.14 Inch Thk
• Number Of Pad Holes: 2
• Catalog Description: COPPER TWO-HOLE HIGH VOLTAGE LUG, LONG BARREL, BLIND END, MAX 15KV, WIRE SIZE 250 KCMIL, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 60R, DIE COLOR CODE RUBY
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Ruby Color; 5.17 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 250 kcmil Conductor Size; 1/2 Inch Stud Size; 60R Die Index; 3 Inch L X 1.08 Inch W X 0.14 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight, Tapered Barrel Type; 544 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210544809
• SKU Name: t&b 54480
