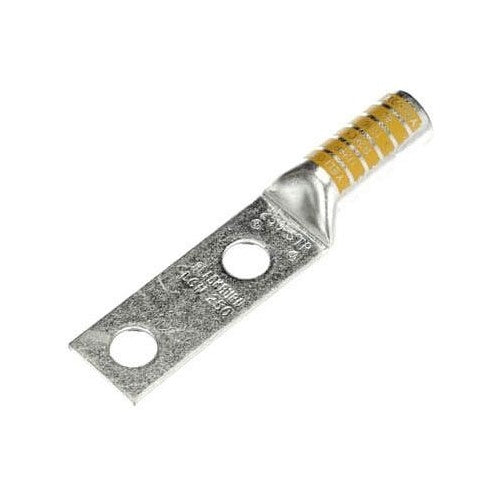

Blackburn LCN250 Copper Test Point 2-Hole Lug Long Barrel 250 1/2B Yellow

Overview

Blackburn LCN250 Copper Test Point 2-Hole Lug Long Barrel 250 1/2B Yellow

Product Specifications

• UPC: 78378603253
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Yellow
• Die Index: 62
• Material: Tin Plated Seamless Copper
• Overall Length: 4-29/32 Inch
• Approval: UL, CSA
• Additional Information: Application Industrial, Oil Rig, Mining, Welding and Transportation Electrical Termination
• Catalog Number: LCN250
• Model: LCN
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 250 KCMIL, 3/0 AWG Stranded, 450/24 Stranded
• Barrel Type: Long, Straight
• Barrel Length: 1-19/32 Inch
• Pad Size: 3 Inch L x 1-1/16 Inch W x 1/8 Inch Thk
• Catalog Description: TYPE LCN COPPER TWO-HOLE LUG, LONG BARREL, MAX 35KV, WIRE SIZE 250 KCMIL, 1/2 INCH BOLT HOLE, TIN PLATED, DIE COLOR CODE YELLOW
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Copper Material; Yellow Color; 4-29/32 Inch Overall Length; 1-19/32 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 250 kcmil, 3/0 AWG Stranded, 450/24 Stranded Conductor Size; 1/2 Inch Stud Size; 62 Die Index; 3 Inch L X 1-1/16 Inch W X 1/8 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Straight Barrel Type; Application Industrial, Oil Rig, Mining, Welding and Transportation Electrical Termination; LCN Model
• Manufacturer: THOMAS & BETTS BLACKBURN
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 783786032532
• SKU Name: lcn250 blkbrn
