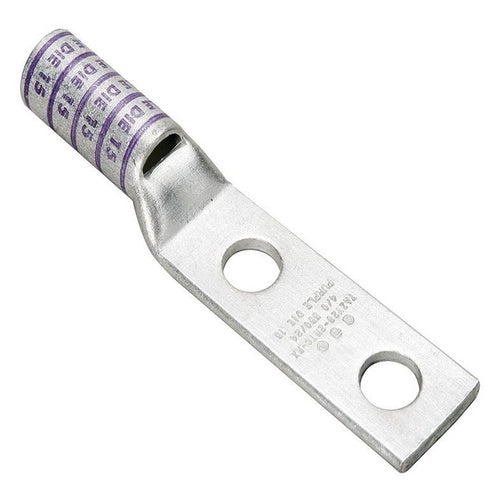

Burndy YAZ282N 4/0Awg 2-Hole Long Lug

Overview

Burndy YAZ282N 4/0Awg 2-Hole Long Lug

Product Specifications

• UPC: 78181020859
• Pad Size: 1.02 Inch Width x 0.14 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Purple
• Die Index: 15
• Material: Electro Tin Plated Copper
• Overall Length: 5.15 Inch
• Approval: UL 468A/468B, CSA
• Additional Information: WITH INSPECTION WINDOW
• Catalog Number: YAZ282N
• Brand Name: HYLUG[TM]
• Model: YAZ-2N
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 200 (Navy), 4/0 AWG Stranded (Code)
• Barrel Type: Long, Straight, Skived
• Barrel Length: 1.62 Inch
• Catalog Description: 4/0 AWG CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, LONG BARREL, INSPECTION WINDOW INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PURPLE COLOR CODE, 15 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Purple Color; 5.15 Inch Overall Length; 1.62 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 200 (Navy), 4/0 AWG Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 15 Die Index; 1.02 Inch Width X 0.14 Inch Thickness Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight, Skived Barrel Type; HYLUG[TM] Brand; With Inspection Window; YAZ-2N Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810208595
• SKU Name: bur yaz282n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
